FMAB-N4PI-0846

Power Line Filter Modules Overview

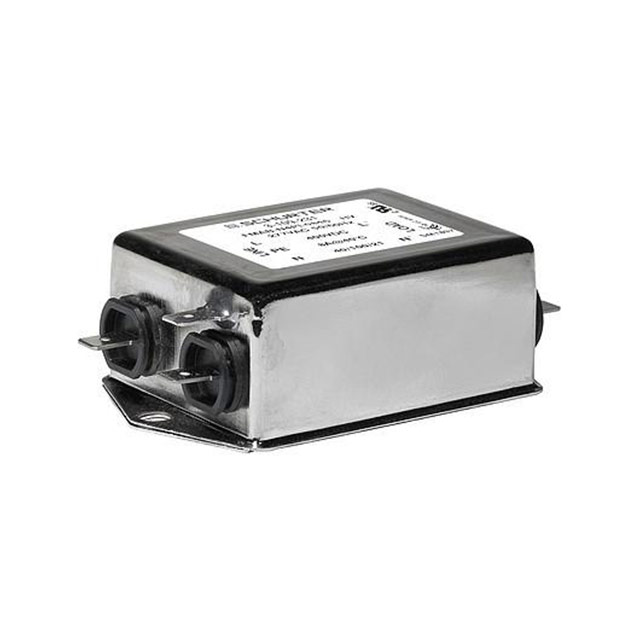

The SCHURTER FMAB-N4PI-0846 is a single-phase AC power line filter from the FMAB NEO series, designed for protection class II applications. It features an 8 A current rating and operates at 277 VAC with a 50/60 Hz frequency. The unit utilizes quick connect terminals for end termination and supports chassis mounting. This component provides first-stage filtering specifically engineered to mitigate symmetrical noise generated by switching semiconductors.

Power Line Filter Modules Feature Summary

• Engineered to suppress symmetrical noise caused by switching semiconductors
• Designed for Protection Class II applications
• Utilizes quick connect terminal interface for circuit integration

Power Line Filter Modules Applications

• Industrial equipment requiring EMC compliance
• Power supplies utilizing switching semiconductors
• Medical devices adhering to safety standards

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAB-N4PI-0846 against official Schurter documentation to confirm ratings. Ensure compatibility with chassis mounting requirements and quick connect wiring methods. Confirm regulatory certifications such as UL and CSA are required for the target application region before procurement.

Power Line Filter Modules Selection Notes

Select this component when symmetrical noise suppression is critical in single-phase AC circuits. The 8 A rating suits moderate power loads. Verify that the chassis mount style fits the enclosure design. Ensure the quick connect termination method aligns with the system's wiring infrastructure and voltage requirements of 277 VAC.

Power Line Filter Modules Part Context

This model belongs to the FMAB NEO series, which focuses on compact, high-performance filtering solutions. The series addresses modern electronic challenges posed by semiconductor switching frequencies. It serves as a specialized component within Schurter's broader portfolio of power entry and protection modules.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified alternatives. Generic cross-references may not match the specific symmetrical noise filtering characteristics or mechanical mounting constraints of the FMAB NEO series.
