FMAC-0931-1612I

Power Line Filter Modules Overview

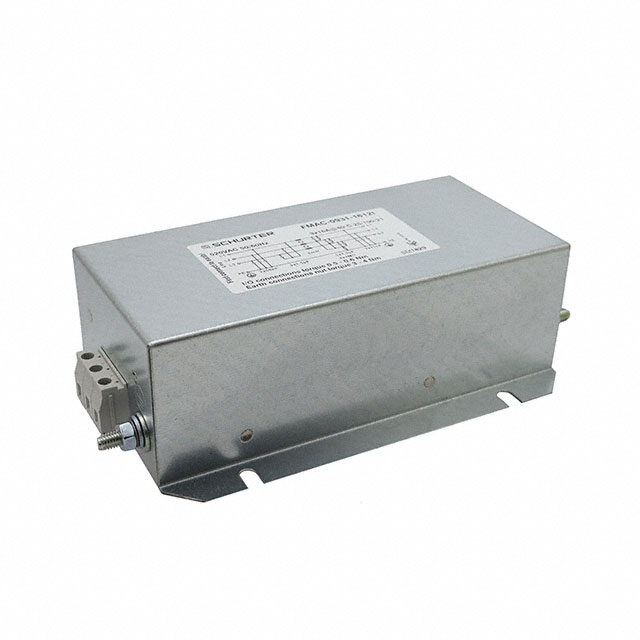

The FMAC-0931-1612I is a three-phase (delta) EMC/EMI line filter from the Schurter FMAC series. It supports nominal AC voltages of 480V and 520V at operating frequencies of 50Hz and 60Hz. The unit handles a maximum current of 16A with a single-stage configuration. Key electrical parameters include an inductance of 6mH, a terminal resistance of 4.1mΩ, and a power loss of 4.9W. It operates within a temperature range of -25°C to 100°C. Physical dimensions are 102mm in length, 48mm in height, and 61mm in depth.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase delta-connected systems
• Utilizes chassis mounting style with screw terminal block connections
• Complies with international safety standards including CE, cURus, and UKCA

Power Line Filter Modules Applications

• Photovoltaic inverters
• Industrial power conditioning equipment
• Three-phase motor drive systems

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as this model supports both 480V and 520VAC configurations. Confirm that the installation environment allows for chassis mounting and adequate thermal dissipation within the specified -25°C to 100°C operating range. Ensure compatibility with the required terminal block connection method for the target application circuit.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for delta-connected loads requiring up to 16A. Consider the physical footprint of 102x48x61mm for enclosure space planning. Verify that the 6mH inductance meets the specific attenuation needs for the targeted frequency spectrum without causing excessive voltage drop or phase shift issues in the power distribution network.

Power Line Filter Modules Part Context

This part belongs to the FMAC series of power line filters designed for industrial applications. The series offers various current ratings and mounting options, with this specific model focusing on delta configurations. It is manufactured by Schurter Inc., a provider of electronic components and systems for power and signal transmission.

Power Line Filter Modules Replacement Considerations

FMAC-0931-1612I

Power Line Filter Modules FAQ

What is the inductance value of the FMAC-0931-1612I?

The inductance value is 6mH.

Is this filter suitable for star-connected systems?

No, this specific model is configured for three-phase delta connections.
