FMAC-0932-2510

Power Line Filter Modules Overview

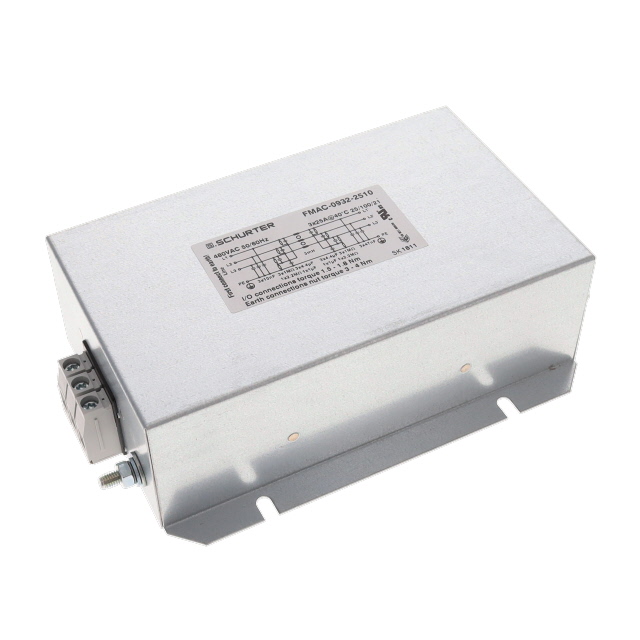

The Schurter FMAC-0932-2510 is a three-phase single-stage RFI filter rated for 25 A at 480 V AC and 60 Hz. It features chassis mounting with screw terminals. Key electrical parameters include a capacitance of 2.2 μF, inductance of 450 μH, leakage current of 8.4 mA, and resistance of 4.1 mΩ. The unit operates between -25°C and 100°C with a power loss of 8 W. Dimensions are 45.5 mm length, 70 mm height, and 250 mm depth. Certifications include IEC 60939 and UL 1283.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Utilizes a single-stage filtering architecture for noise reduction
• Designed for secure chassis mounting via screw terminal connections

Power Line Filter Modules Applications

• Industrial machinery power supply conditioning
• Three-phase motor drive input protection
• Commercial building electrical distribution systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix code against official Schurter documentation to confirm exact electrical ratings and certification status. Ensure the procurement specification matches the required voltage and current parameters for the target application. Confirm mechanical dimensions and mounting hole patterns align with the installation panel requirements before finalizing orders.

Power Line Filter Modules Selection Notes

Select this component when a three-phase solution is required for 25 A circuits operating at 480 V AC. Consider the physical depth of 250 mm during enclosure design to ensure adequate space. Verify that the leakage current of 8.4 mA complies with safety standards for the specific equipment being protected. Check if the single-stage attenuation meets the electromagnetic compatibility requirements of the environment.

Power Line Filter Modules Part Context

This model belongs to the FMAC series of power line filters manufactured by Schurter. The series offers various current ratings and configurations for industrial EMC applications. The FMAC-0932-2510 specifically addresses high-current three-phase needs within the standard chassis-mount form factor provided by the manufacturer.

Power Line Filter Modules Replacement Considerations

Cross-reference part numbers such as FMAC-091C-2510 or FMAC-0932-2512I for alternative options. Verify that substitute models match the 25 A rating, 480 V AC voltage, and three-phase configuration. Ensure dimensional compatibility and terminal type consistency to maintain existing mounting infrastructure.
