FMAD-0956-H310

Power Line Filter Modules Overview

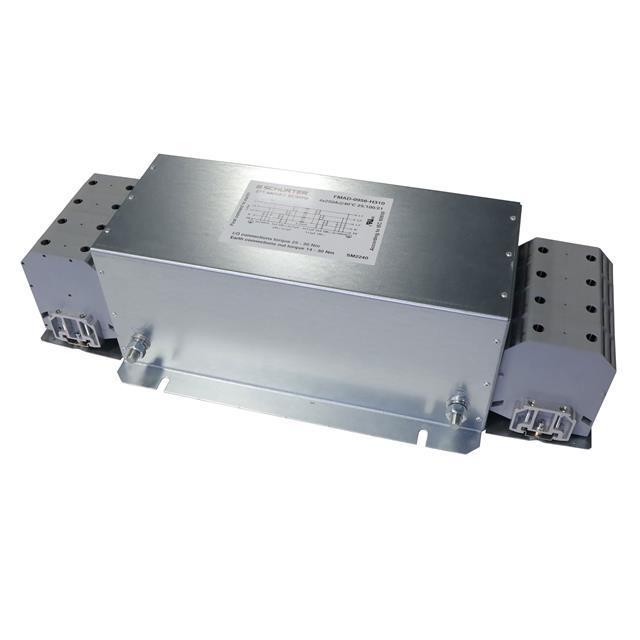

The FMAD-0956-H310 is a single-stage EMC/EMI power line filter module designed for three-phase systems with a neutral conductor. It features a metal housing and supports terminal block mounting. The unit is rated for a continuous current of 250 A at voltages of 480 VAC or 520 VAC, operating within the 50/60 Hz frequency range. This chassis-mount component provides general-purpose noise suppression for industrial power distribution networks.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference filtering architecture
• Metal enclosure construction for structural integrity
• Terminal block connection interface
• Chassis mount installation method

Power Line Filter Modules Applications

• Three-phase industrial power distribution systems
• Electromagnetic compatibility compliance in heavy machinery
• Power quality improvement for sensitive electronic loads

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirement against the application's nominal system voltage to ensure compatibility with either 480V or 520V configurations. Confirm that the terminal block mounting style aligns with the existing infrastructure design. Ensure the 250A current rating exceeds the maximum expected load current under all operating conditions to prevent thermal overload.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels in three-phase applications. The choice depends on the availability of chassis mounting space and the need for a robust metal housing. Consider the terminal block interface if screw-down connections are preferred over other termination methods for high-current handling.

Power Line Filter Modules Part Context

This component belongs to the FMAD series of power line filters from Schurter Inc., which are engineered for demanding industrial environments. The series offers various current ratings and voltage options to suit different power distribution needs. The FMAD-0956-H310 specifically addresses the requirements for high-current three-phase systems requiring effective EMI suppression.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for direct cross-references. Verify that any substitute part matches the 250A current rating, three-phase configuration, and physical mounting dimensions to maintain system compatibility.
