FMAD-395C-8012

Power Line Filter Modules Overview

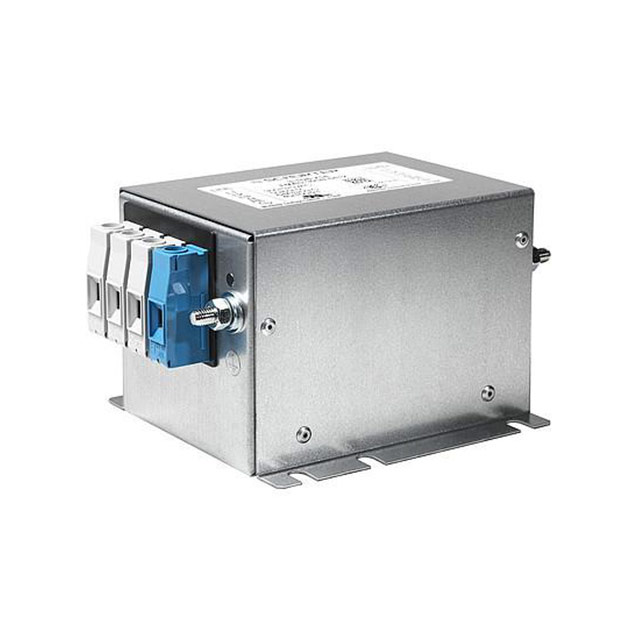

The FMAD-395C-8012 is a three-phase wye-configured EMC/EMI line filter from the FMAD NEO series by SCHURTER Inc. It supports a rated current of 80 A and operates at AC voltages of 300 V or 520 V at 50/60 Hz. The unit features a single-stage configuration with terminal block termination for chassis mounting. It functions within an ambient temperature range of -40°C to +100°C and holds certifications including cURus, ENEC, and UL.

Power Line Filter Modules Feature Summary

• Three-phase wye configuration for industrial power distribution
• Single-stage EMC/EMI attenuation design
• Terminal block termination style for secure connection
• Chassis mounting installation method

Power Line Filter Modules Applications

• Industrial machinery power supplies
• General purpose three-phase equipment
• High-current electronic systems

Power Line Filter Modules Procurement Notes

Verify the specific part number against official SCHURTER documentation to confirm ratings and certifications. Ensure compatibility with system voltage and current requirements before procurement. Check for updated certification status and environmental compliance data directly from the manufacturer's resources.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust three-phase filtering in high-current environments. Confirm that the terminal block termination and chassis mounting style align with the mechanical design. Verify that the operating temperature range meets the environmental conditions of the intended deployment site.

Power Line Filter Modules Part Context

This component belongs to the FMAD NEO series, which provides power line filters designed for demanding industrial applications. The series emphasizes reliability and compliance with international safety standards for electromagnetic interference suppression in three-phase power systems.

Power Line Filter Modules Replacement Considerations

Cross-reference with other FMAD NEO models for alternative current ratings. Verify mechanical dimensions and terminal block specifications when considering substitutes from the same series.
