FMAM63003

RF Amplifiers Overview

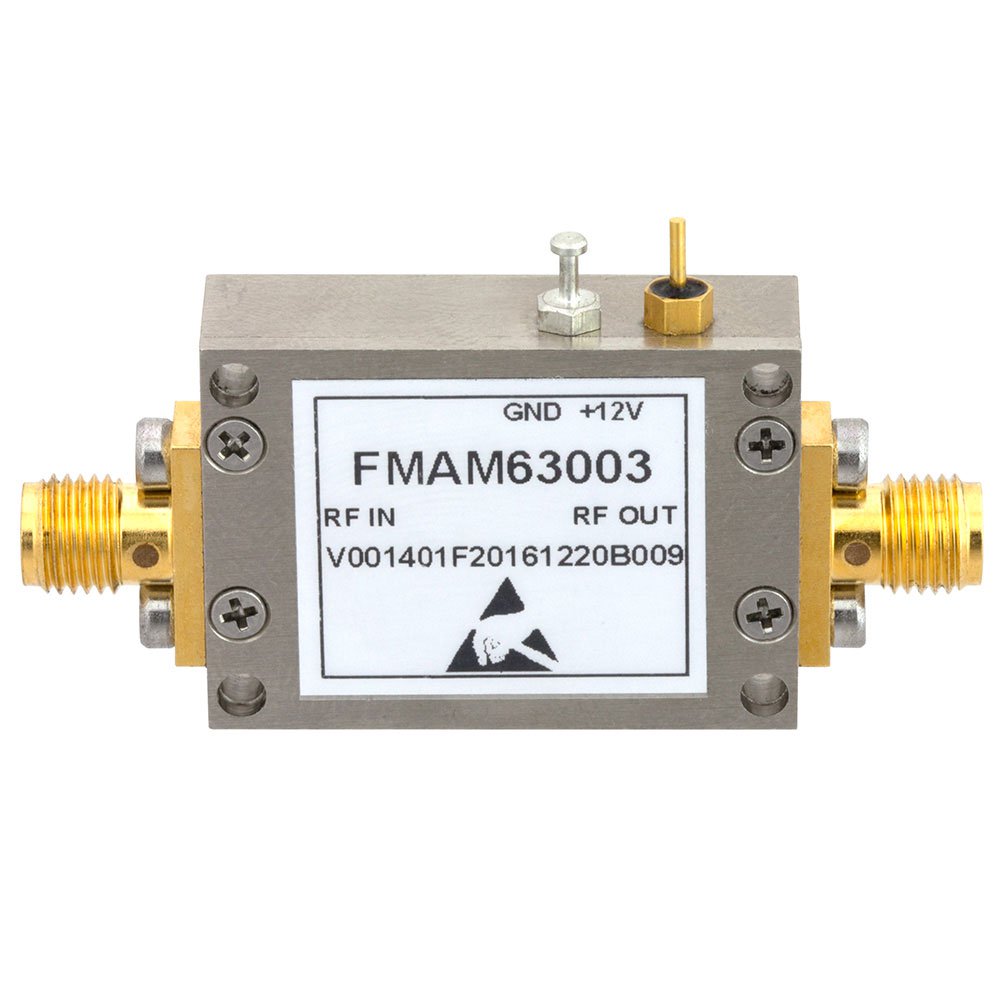

The FMAM63003 is a low noise amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 30 MHz to 1.5 GHz and provides a gain of 29 dB. The device features a noise figure of 1.6 dB and an input power compression point (P1dB) of 23 dBm. It includes input protection mechanisms and utilizes SMA connectors for interfacing.

RF Amplifiers Feature Summary

• Low noise amplification with 1.6 dB noise figure
• Input protection circuitry integrated
• Broadband operation from 30 MHz to 1.5 GHz

RF Amplifiers Applications

• Radar systems
• Communication receivers
• Test and measurement equipment

RF Amplifiers Procurement Notes

Verify the specific datasheet revision and connector type compatibility before integration. Confirm that the SMA interface matches the system requirements. Ensure the operating voltage and current specifications align with the power supply design. Check for any recent updates to the product specifications or pinout definitions.

RF Amplifiers Selection Notes

Select this component when a low noise figure is critical within the 30 MHz to 1.5 GHz band. Consider the 29 dB gain for signal conditioning needs. Evaluate the input protection feature for robustness in harsh environments. Compare performance against other modules requiring similar bandwidth and sensitivity.

RF Amplifiers Part Context

This module belongs to Fairview Microwave's RF amplifier lineup, designed for high-performance applications. It complements other broadband amplifiers in the portfolio, offering specialized low-noise characteristics. The product is categorized under wireless and RF integrated circuits, targeting professional engineering solutions.

RF Amplifiers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the electrical parameters and mechanical form factor of the original component.
