FMBC-0927-1210

Power Line Filter Modules Overview

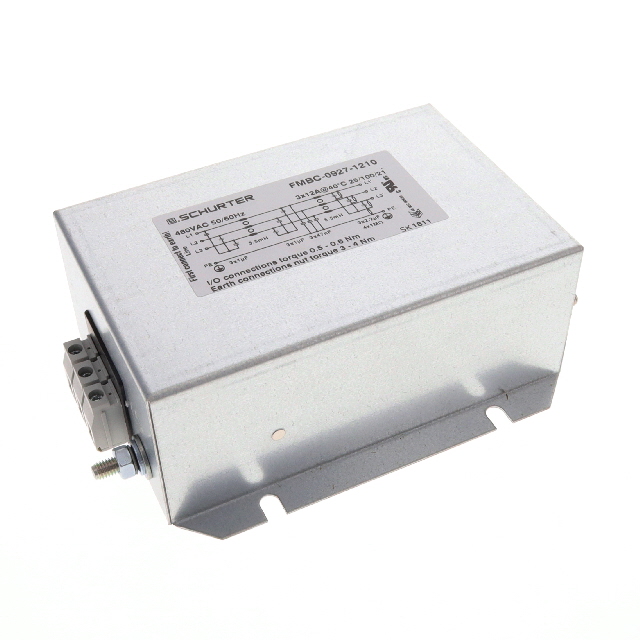

The FMBC-0927-1210 is a three-phase EMC/EMI line filter from the Schurter FMBC NEO series. It provides two-stage attenuation for industrial power systems operating at 480V AC and frequencies of 50Hz or 60Hz. The unit supports a maximum current of 12A with a capacitance value of 6.8μF and an inductance of 1.9mH. Designed for chassis mounting via terminal blocks, it features a leakage current of 33mA and operates within a temperature range of -25°C to 100°C.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Terminal block connection interface for secure electrical integration
• Chassis mount design suitable for industrial equipment enclosures

Power Line Filter Modules Applications

• Three-phase industrial machinery power conditioning
• Factory automation system noise reduction
• Power distribution units requiring EMI mitigation

Power Line Filter Modules Procurement Notes

Verify that the specific part number matches the required voltage and current ratings for your application. Confirm that the terminal block connection type aligns with your wiring infrastructure. Ensure the chassis mounting dimensions fit your enclosure constraints before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this component when a two-stage solution is required for three-phase systems up to 480V AC. Consider the 12A current rating and terminal block termination method. Evaluate the physical dimensions against available space in the target installation environment.

Power Line Filter Modules Part Context

This model belongs to the FMBC NEO series, which focuses on compact and efficient filtering solutions. The series includes various configurations for different phase counts and current capacities, providing standardized options for industrial EMC compliance needs across multiple product lines.

Power Line Filter Modules Replacement Considerations

FMBC-0927-1610 offers a higher current capacity of 16A while maintaining similar form factors. FMBC-0927-0810 provides a lower current option at 8A. Verify compatibility with existing mounting structures when substituting these variants.
