FMBC-395A-1612

Power Line Filter Modules Overview

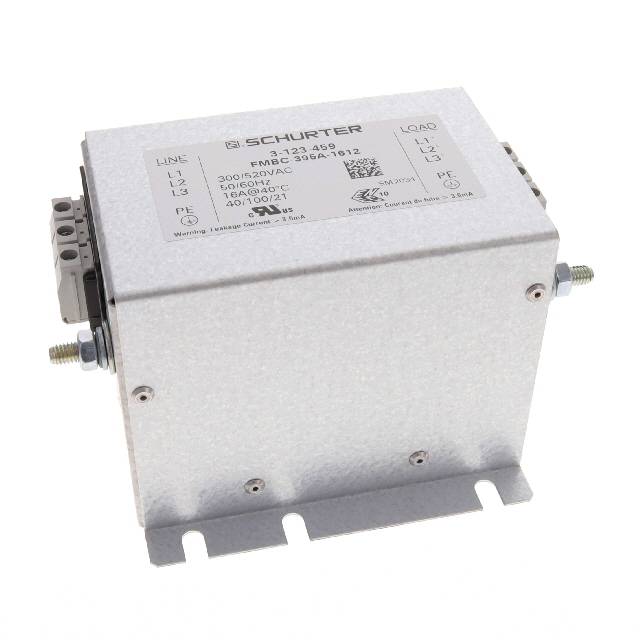

The FMBC-395A-1612 is a three-phase RFI filter from the Schurter FMBC NEO series. It supports a maximum current of 30 A and operates at 520 V AC, 50/60 Hz. Key electrical parameters include a capacitance of 6.8 μF, inductance of 1.9 mH, leakage current of 33 mA, and power loss of 6.8 W. The unit features screw terminals for connection and measures 275 mm x 85 mm x 50 mm. It functions within a temperature range of -25°C to 100°C and holds UL1283 certification.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Utilizes a two-stage filtering architecture for broadband attenuation
• Designed for chassis mounting with screw terminal connections

Power Line Filter Modules Applications

• Industrial machinery power distribution systems
• Three-phase motor drive installations
• Commercial building electrical infrastructure

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Schurter documentation to confirm compatibility with your system requirements. Ensure that the voltage, current, and frequency ratings match your application's operational parameters before procurement. Cross-reference technical specifications such as leakage current and power loss to validate performance expectations. Confirm physical dimensions and mounting style align with your enclosure design constraints.

Power Line Filter Modules Selection Notes

Select this component based on its three-phase configuration and 30 A current rating. Verify that the 520 V AC operating voltage suits your network. Consider the physical dimensions and screw terminal interface for mechanical integration. Evaluate the thermal performance characteristics relative to your ambient operating conditions and required heat dissipation strategy.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series of power line filters manufactured by Schurter. The series focuses on providing effective RFI suppression for industrial applications. The product line includes various configurations tailored for different current and voltage requirements across single and three-phase systems.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' products without explicit validation.
