FMBC-A91F-7510

Power Line Filter Modules Overview

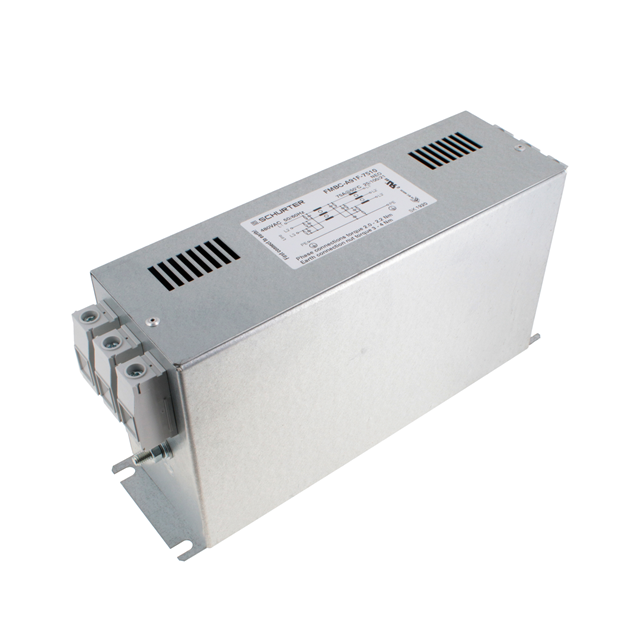

The FMBC-A91F-7510 is a three-phase RFI filter from the Schurter FMBC NEO series. It supports a maximum current of 75 A and operates at voltages up to 480 VAC or 520 VAC. The unit features a two-stage filtering design with screw terminal connections for chassis mounting. Key electrical parameters include a capacitance value of 6.8 μF, an inductance of 1.9 mH, and a leakage current of 33 mA. It functions within a temperature range of -25°C to 100°C, with physical dimensions of 275 mm length, 85 mm height, and 50 mm depth.

Power Line Filter Modules Feature Summary

• Two-stage attenuation architecture for enhanced electromagnetic interference suppression
• Screw terminal interface designed for secure chassis mounting applications
• Compliant with UL1283 safety standards for industrial power line protection

Power Line Filter Modules Applications

• Industrial machinery power distribution systems
• Three-phase motor drive installations
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480VAC vs 520VAC) required by your system design against the datasheet specifications. Confirm that the 75A current capacity aligns with the load requirements. Ensure the chassis mounting style and screw terminal connection type are compatible with the existing enclosure infrastructure before finalizing the order.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is necessary. The FMBC NEO series offers a compact form factor compared to older models. Consider the thermal performance and ambient operating temperature limits if installed in enclosed spaces. Verify compatibility with downstream equipment regarding leakage current limits.

Power Line Filter Modules Part Context

This model belongs to the FMBC NEO family of power line filters manufactured by Schurter. The series focuses on providing efficient EMC solutions for industrial environments. These filters are engineered to meet stringent international standards for electromagnetic compatibility and safety in demanding power applications.

Power Line Filter Modules Replacement Considerations

FMBC-A91G-J010 is a documented substitute offering 100A capacity. FMBC-A91U-0710 provides a lower 7A alternative. Verify pinout and mounting hole patterns match the existing installation footprint before swapping.
