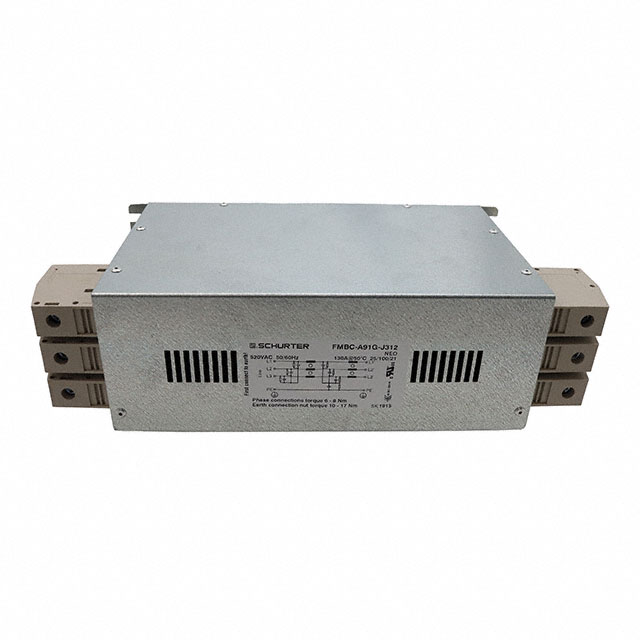

FMBC-A91G-J312

$474.56

Description：LINE FILTER 480/520VAC 130A CHAS
Series：FMBC NEO
Mfr：SCHURTER Inc.
Package：Bulk

SKU:96fc69b07a78 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMBC-A91G-J312 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 480/520VAC 130A CHAS. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMBC-A91G-J312

Description：LINE FILTER 480/520VAC 130A CHAS
Series：FMBC NEO
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：480V, 520V
Current：130 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：L1 - 700µH, L2 - 26µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMBC-A91G-J312

FMBC-A91G-J312

Power Line Filter Modules Overview

The FMBC-A91G-J312 is a three-phase, two-stage EMC/EMI power line filter from the Schurter FMBC NEO series. It supports a rated current of 130 A and operates at voltages up to 520 VAC (480 VAC nominal). Designed for chassis mounting with screw terminals, it functions at 50/60 Hz frequencies. The unit features a leakage current of 19.3 mA and complies with UL and VDE standards.

Power Line Filter Modules Feature Summary

Two-stage filtering architecture for enhanced noise suppression
Chassis mount design with screw terminal connections
Compliant with UL and VDE safety standards

Power Line Filter Modules Applications

Industrial machinery power conditioning
Three-phase motor drive systems
General purpose EMC protection for heavy equipment

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as the component supports both 480 VAC and 520 VAC ratings. Confirm that the chassis mounting dimensions and terminal torque specifications align with the installation environment. Ensure compliance with local electrical codes for industrial EMC filters before deployment.

Power Line Filter Modules Selection Notes

Select this model for applications requiring high-current handling up to 130 A in three-phase configurations. The two-stage design is suitable for environments demanding strict EMI reduction. Verify that the physical chassis mount footprint fits the available enclosure space and that the screw terminal interface matches the wiring gauge used in the system.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, which provides robust EMC solutions for industrial power lines. The series is characterized by high current capacity and modular design options. The FMBC-A91G-J312 specifically addresses needs for delta-connected three-phase systems requiring significant noise attenuation.
