FMBC-R91Q-3012

Power Line Filter Modules Overview

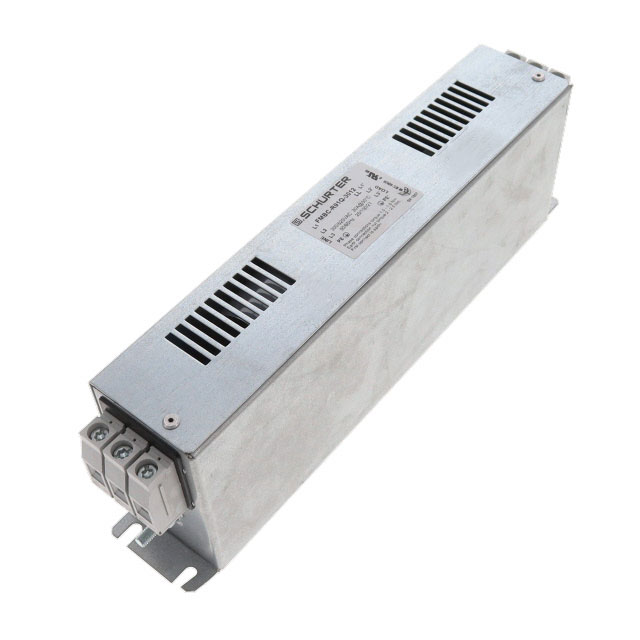

The Schurter FMBC-R91Q-3012 is a three-phase (Delta) RFI filter module rated for 30 A and 520 V AC. It operates at 50 Hz and 60 Hz frequencies. Key electrical parameters include a capacitance of 6.8 μF, inductance of 1.9 mH, and leakage current of 33 mA. The unit features a resistance of 2.5 mΩ and power loss of 6.8 W. Dimensions are 275 mm length, 85 mm height, and 50 mm depth. Operating temperature range spans from -25°C to 100°C. It utilizes screw terminal connections and chassis mounting.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture designed for three-phase systems
• Low leakage current specification suitable for sensitive equipment
• Chassis mount installation with screw terminal block interface

Power Line Filter Modules Applications

• Industrial power line filtering
• Three-phase Delta system EMC/EMI suppression
• Equipment requiring low leakage current protection

Power Line Filter Modules Procurement Notes

Verify the specific suffix code against official Schurter documentation to confirm exact configuration details. Ensure the application voltage and current ratings match the 520 V AC and 30 A specifications. Confirm mounting requirements align with chassis installation needs. Check for required certifications such as UL1283 compliance before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust two-stage filtration in three-phase Delta configurations. Consider the physical dimensions and chassis mounting style during mechanical design integration. Evaluate the leakage current limits against safety standards for the intended equipment class. Verify thermal management capabilities within the specified operating temperature range.

Power Line Filter Modules Part Context

This part belongs to the FMBC LL series of power line filter modules manufactured by Schurter Inc. The series focuses on providing effective electromagnetic interference suppression for industrial and commercial power distribution networks. These filters are engineered to meet stringent international standards for radio frequency interference.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified equivalent models. Cross-reference technical specifications including current rating, voltage, and physical dimensions when evaluating alternatives.
