FMBD-B92C-6412

Power Line Filter Modules Overview

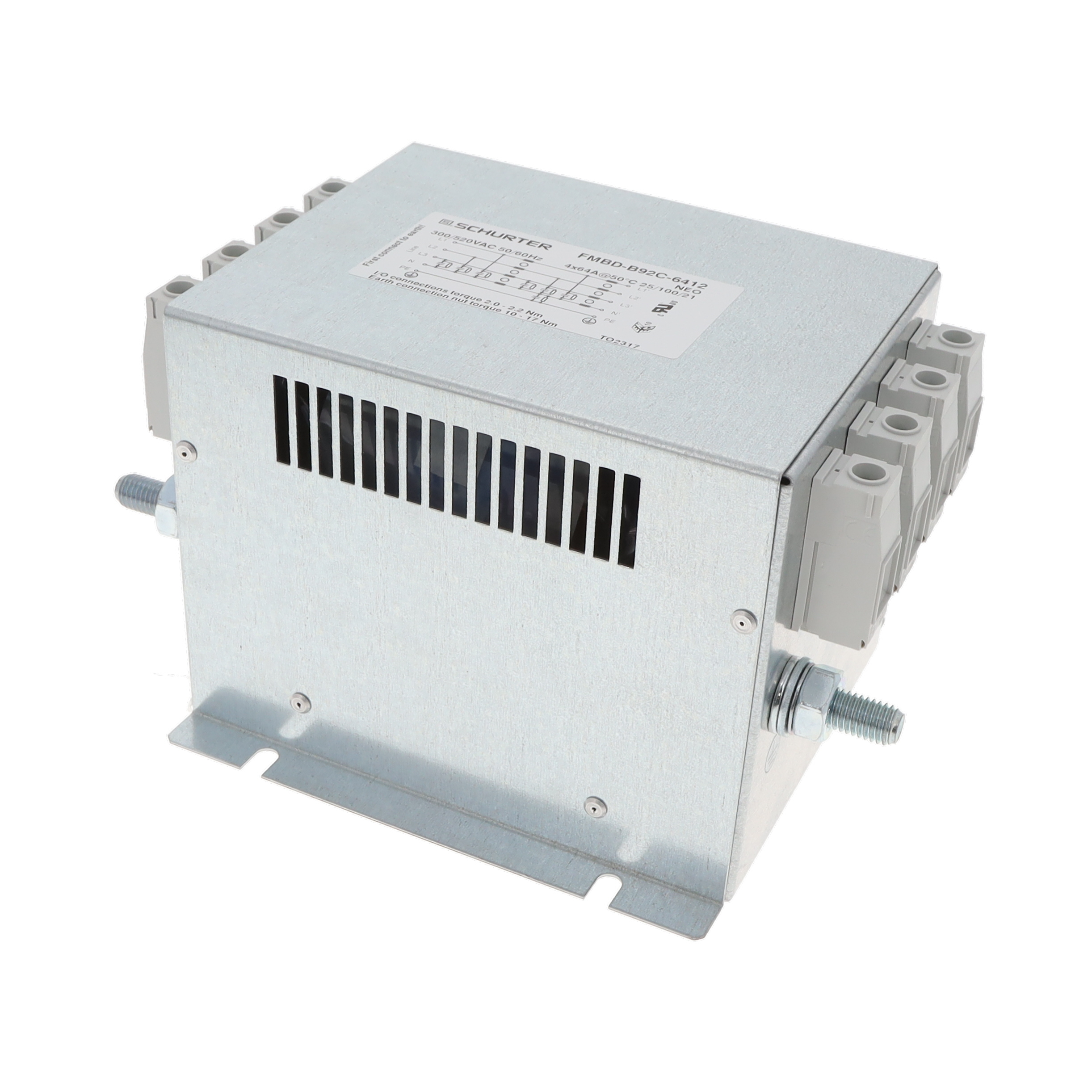

The Schurter FMBD-B92C-6412 is a three-phase (Wye) EMC/EMI line filter module designed for industrial power distribution. It features a two-stage configuration with a rated current of 64 A and voltage ratings of 300 VAC and 520 VAC at 50/60 Hz. The unit utilizes screw terminals for connection and has physical dimensions of 160x125x125 mm. It supports a maximum operating current of 64 A and includes two poles. The filter is constructed for robust performance in high-current applications, ensuring effective interference suppression within specified electrical limits.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic compatibility
• Three-phase Wye configuration suitable for balanced power systems
• Screw terminal interface for secure electrical connections

Power Line Filter Modules Applications

• Industrial power distribution architectures
• Battery-operated systems requiring noise reduction
• Medical equipment power supplies
• LED drivers and ballasts

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirement against the application's nominal AC voltage, as the component supports both 300 VAC and 520 VAC variants. Confirm that the load current does not exceed the 64 A continuous rating. Ensure the mounting environment accommodates the physical dimensions of 160x125x125 mm. Check for compliance with local electromagnetic interference regulations relevant to the installation site.

Power Line Filter Modules Selection Notes

Select this model when a two-stage EMI solution is required for three-phase Wye systems. The 64 A current rating makes it suitable for medium-to-high power industrial loads. Consider the screw terminal type if panel mounting with rigid wiring is preferred over PCB integration. Evaluate the physical footprint constraints before finalizing the design, as the housing dimensions are fixed.

Power Line Filter Modules Part Context

This component belongs to the SCHURTER NEO FILTER series, which focuses on compact and efficient power line filtering solutions. The FMBD series is engineered for high-current applications, providing reliable protection against conducted emissions. It complements other Schurter components like high-voltage fuses and connectors in complete power management assemblies.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and terminal block specifications before considering alternative models from different manufacturers.
