FMWAN1047

Antennas RF Overview

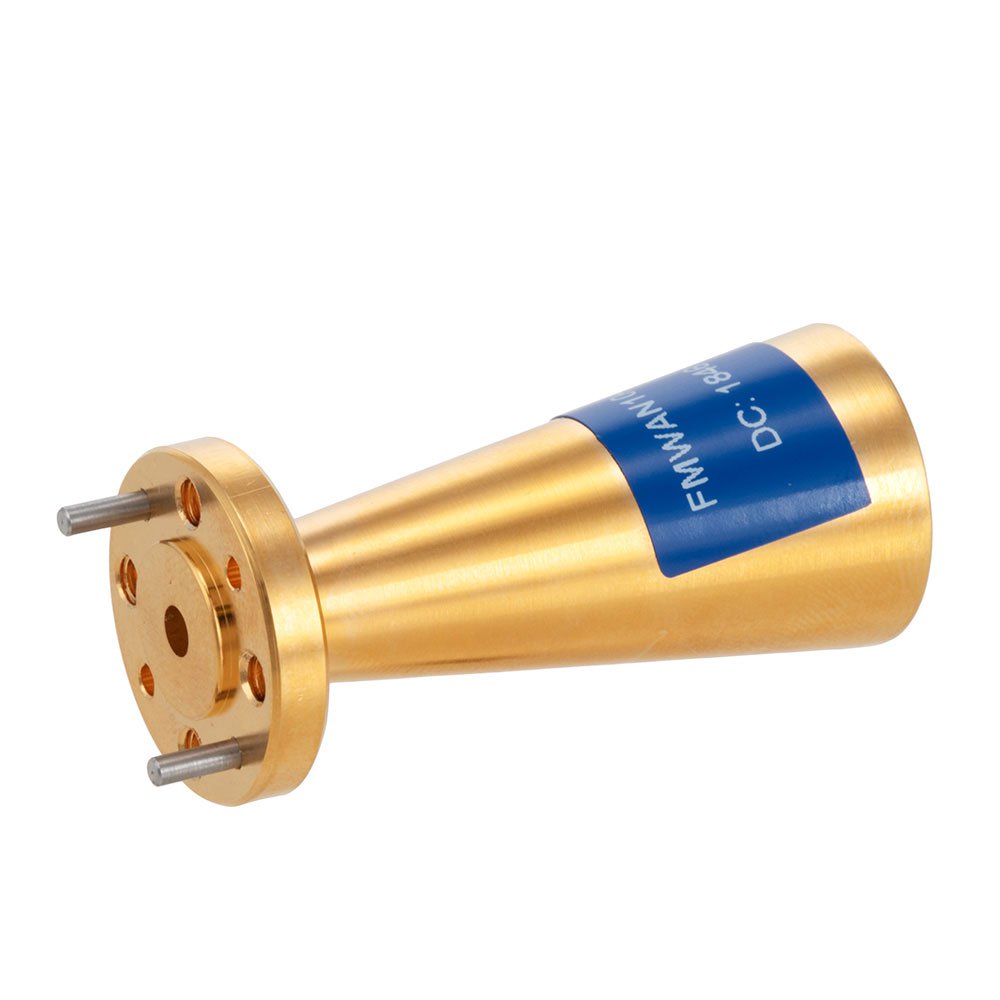

The FMWAN1047 is a horn antenna manufactured by Fairview Microwave, designed for millimeter-wave applications. It operates within a frequency range of 77 GHz to 87 GHz and provides a nominal gain of 20 dBi. The antenna features specific beamwidth characteristics, with an E-plane beamwidth of 16 degrees and an H-plane beamwidth of 20 degrees. This component is packaged in a bag and weighs approximately 0.074 lbs.

Antennas RF Feature Summary

• Horn antenna design optimized for high-frequency millimeter-wave operations
• Provides 20 dBi nominal gain across the specified frequency band
• Defined radiation patterns with 16-degree E-plane and 20-degree H-plane beamwidths

Antennas RF Applications

• Millimeter-wave communication systems
• Radar sensing applications
• Test and measurement instrumentation

Antennas RF Procurement Notes

Verify availability through authorized distributors as stock status may vary. Confirm technical specifications against the official datasheet prior to integration. Ensure environmental conditions match operational requirements for reliable performance in millimeter-wave environments.

Antennas RF Selection Notes

Select this model when a 20 dBi gain is required between 77 GHz and 87 GHz. Consider the specific beamwidth dimensions for system alignment. Evaluate weight constraints if portability is a factor, noting the 0.074 lb mass.

Antennas RF Part Context

Fairview Microwave offers a broad portfolio of RF and microwave components. The FMWAN1047 belongs to their horn antenna series, targeting high-frequency bands where directional transmission and reception are critical for signal integrity and range.

Antennas RF Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Check manufacturer documentation for updated series replacements or equivalent performance alternatives.
