FS181054SHP0

Overview

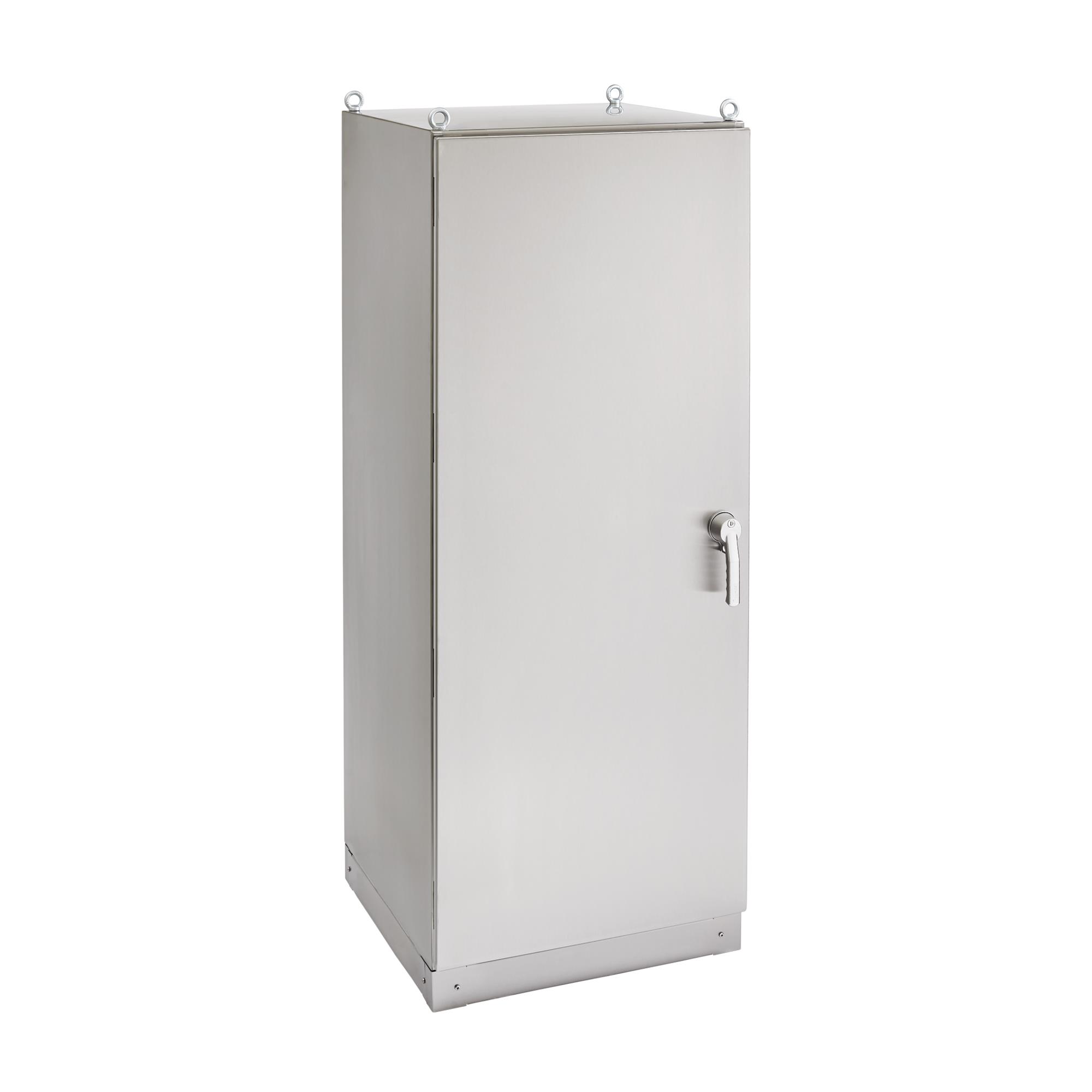

The Hoffman Enclosures Inc. FS181054SHP0 is a heavy-duty, single-access floor-mount enclosure constructed from Type 304 stainless steel. It features welded seams and a three-point latching system with a water-tight gasket to ensure environmental protection. The unit measures 1879 mm in length, 1018 mm in width, and 485 mm in depth. It carries NEMA 3/3R/4/4X/12/13 and IP66 ratings, supporting evenly distributed loads between 500 kg and 1000 kg.

Feature Summary

• Constructed from Type 304 stainless steel with welded seams for structural integrity
• Equipped with a three-point latching mechanism and water-tight gasket for sealing
• Designed as a free-standing or floor-mount unit for large component housing

Applications

• Oil and gas industry environments
• Water and wastewater treatment facilities
• Petrochemical processing plants
• Power plant installations

Procurement Notes

Verify the specific model suffix against official nVent Hoffman documentation to confirm material grade and latch configuration. Ensure the required load capacity aligns with the 500 kg to 1000 kg evenly distributed limit. Confirm that the NEMA and IP ratings meet the specific environmental exposure requirements of the installation site before finalizing procurement.

Selection Notes

Select this model when heavy-duty corrosion resistance and high ingress protection are required for outdoor or harsh industrial settings. The Type 304 stainless steel construction provides durability against oil, water, and dust. Consider the floor-mount design if wall mounting is not feasible for the intended equipment size. Verify that the internal dimensions accommodate the specific motor starters or drives being housed.

Part Context

This part belongs to the FS66S series of heavy-duty enclosures by nVent Hoffman. These units are engineered for demanding applications where standard enclosures may fail. The series emphasizes robust construction and superior sealing capabilities to protect sensitive electrical components from severe environmental conditions found in industrial sectors.

Replacement Considerations

Consult official nVent Hoffman cross-reference guides for verified substitutes. Ensure any replacement maintains the same stainless steel grade, dimensional footprint, and environmental rating specifications.
