FTS-106-04-F-DV-A-P

$1.89

Description：CONN HEADER SMD 12POS 1.27MM
Series：FTS
Mfr：Samtec Inc.
Package：Tube

SKU:3e4cab32feb4 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FTS-106-04-F-DV-A-P is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 12POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for FTS-106-04-F-DV-A-P

Description：CONN HEADER SMD 12POS 1.27MM
Series：FTS
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.150" (3.81mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.034" (0.86mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide, Pick and Place
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3.4A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for FTS-106-04-F-DV-A-P

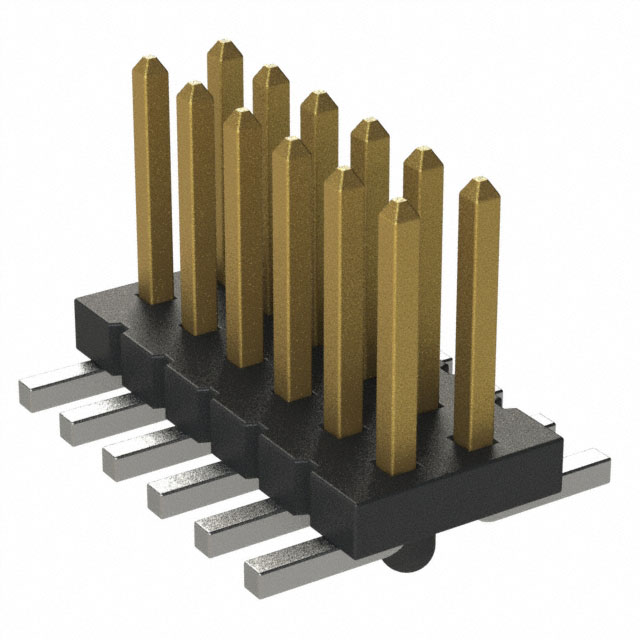

FTS-106-04-F-DV-A-P

Headers, Male Pins Overview

The FTS-106-04-F-DV-A-P is a Micro Low Profile Header Strip manufactured by Samtec. It features a 1.27 mm (0.05 in) pitch with 12 positions arranged in two rows. The component utilizes surface mount termination and straight installation orientation. Contact materials consist of phosphor bronze with gold plating, housed in a black liquid crystal polymer body rated UL 94 V-0. Electrical ratings include a current capacity of 3.4 A and voltage of 495 VAC. Operating temperatures range from -55°C to +125°C.

Headers, Male Pins Feature Summary

Micro low profile design optimized for space-constrained board-to-board applications
High reliability construction meeting MIL-DTL-55302 testing standards
Configurable end shroud options available to prevent incorrect installation

Headers, Male Pins Applications

Board-to-Board interconnects
High mating cycle applications
Automotive electronics systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix configuration against official Samtec documentation before procurement. Confirm that the selected variant matches the required termination style and row configuration. Check current availability status through authorized distributors as supply levels may fluctuate. Ensure compliance with RoHS directives if required by the target application environment.

Headers, Male Pins Selection Notes

Select this header when a micro low profile solution is required for high-reliability connections. Consider the FTSH series for enhanced signal integrity or the TSH series for shrouded housing requirements. Evaluate the need for keyed configurations to avoid misalignment during assembly. Verify thermal performance limits against the operational environment constraints.

Headers, Male Pins Part Context

This component belongs to the FTS series of Micro Low Profile Header Strips within the Samtec portfolio. It shares design characteristics with the FTSH series but offers distinct termination and profile variations. The series provides configurable post heights and orientations to support diverse PCB layout requirements.
