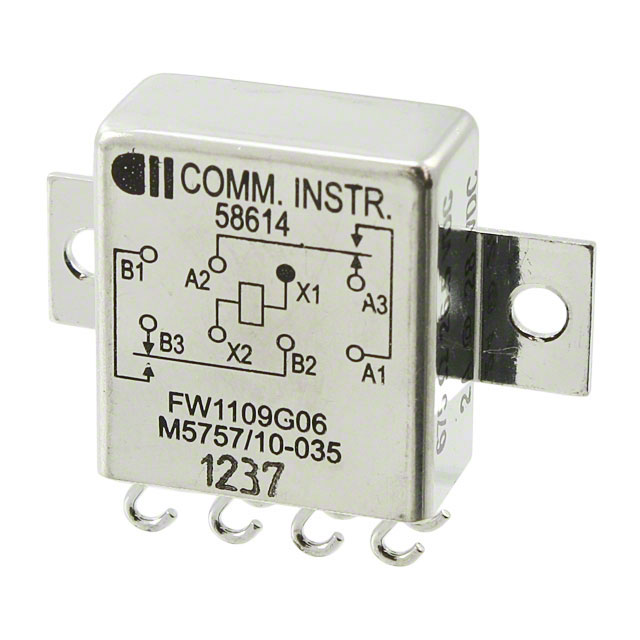

Signal Relays, Up To 2 Amps FW1109G06 product image

FW1109G06

$153.63

Description：RELAY GEN PURPOSE DPDT 2A 26.5V
Series：FW, CII
Mfr：TE Connectivity Aerospace, Defense and Marine
Package：Bulk

SKU:f8f7bfaa6a65 Category: Signal Relays, Up to 2 Amps Brand: TE Connectivity Aerospace, Defense and Marine

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FW1109G06 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Aerospace, Defense and Marine. Its product description is RELAY GEN PURPOSE DPDT 2A 26.5V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for FW1109G06

Description：RELAY GEN PURPOSE DPDT 2A 26.5V
Series：FW, CII
Mfr：TE Connectivity Aerospace, Defense and Marine
Package：Bulk
Mounting Type：Chassis Mount
Coil Voltage：26.5VDC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：2:00 AM
Switching Voltage：28VDC - Nom
Load - Max Switching：-
Coil Current：39.3 mA
Coil Type：Non Latching
Features：-
Termination Style：Solder Hook
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：13.5 VDC
Must Release Voltage：-
Operate Time：5 ms
Release Time：5 ms
Operating Temperature：-65°C ~ 125°C
Contact Material：-
Approval Agency：-
Relay Type：General Purpose
Grade：Military
Qualification：MIL-R-5757/10

Signal Relays, Up To 2 Amps datasheet and documents for FW1109G06

FW1109G06
