FWJ-06-02-T-S-RA

$1.31

Description：CONN HEADER R/A 6POS 3.96MM
Series：FWJ
Mfr：Samtec Inc.
Package：Bulk

SKU:6295c7c3359c Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FWJ-06-02-T-S-RA is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER R/A 6POS 3.96MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for FWJ-06-02-T-S-RA

Description：CONN HEADER R/A 6POS 3.96MM
Series：FWJ
Mfr：Samtec Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.156" (3.96mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.320" (8.13mm)
Contact Length - Post：0.175" (4.45mm)
Overall Contact Length：-
Insulation Height：0.250" (6.35mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polybutylene Terephthalate (PBT)
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：600VAC, 845VDC

Headers, Male Pins datasheet and documents for FWJ-06-02-T-S-RA

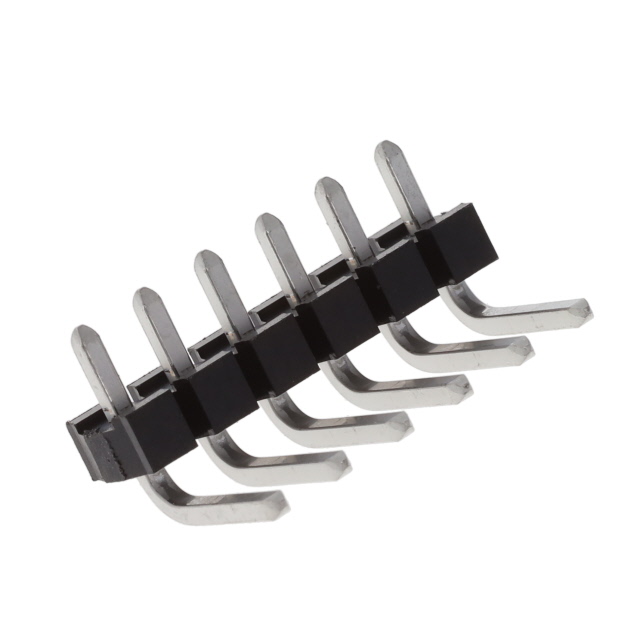

FWJ-06-02-T-S-RA

Headers, Male Pins Overview

The FWJ-06-02-T-S-RA is a flexible board stacking header from Samtec, designed for power terminal strip applications. It features a .156 inch (3.96 mm) pitch and provides six positions in a single row. The connector utilizes a right-angle through-hole mounting style with solder termination. Constructed with phosphor bronze contacts finished in tin plating, it ensures reliable electrical performance. The housing is made of black polybutylene terephthalate (PBT), rated UL94 V-0 for flammability. This component supports a working temperature range of -55°C to +105°C and carries an insulation height of 0.250 inches.

Headers, Male Pins Feature Summary

Right-angle configuration facilitates compact board-to-board interconnects
Flexible design accommodates misalignment during mating
Push-pull locking mechanism secures connection stability

Headers, Male Pins Applications

Power distribution modules
Industrial control systems
Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official datasheets to confirm right-angle orientation and contact finish specifications. Ensure compatibility with mating receptacles regarding pitch and row count. Cross-reference manufacturer part numbers with distributor catalogs to avoid ordering errors due to similar series configurations.

Headers, Male Pins Selection Notes

Select this model when space constraints require perpendicular board connections. Confirm that the .156 inch pitch aligns with existing PCB layout requirements. Evaluate thermal management needs against the specified operating temperature range. Verify mechanical clearance for the right-angle profile within the assembly enclosure.

Headers, Male Pins Part Context

This component belongs to the FWJ series of flexible board stacking headers. These connectors are engineered for high-reliability power applications where standard rigid headers may fail due to alignment issues. The series offers various lengths and orientations to suit diverse system architectures.
