FXP612.07.0095A

Antennas RF Overview

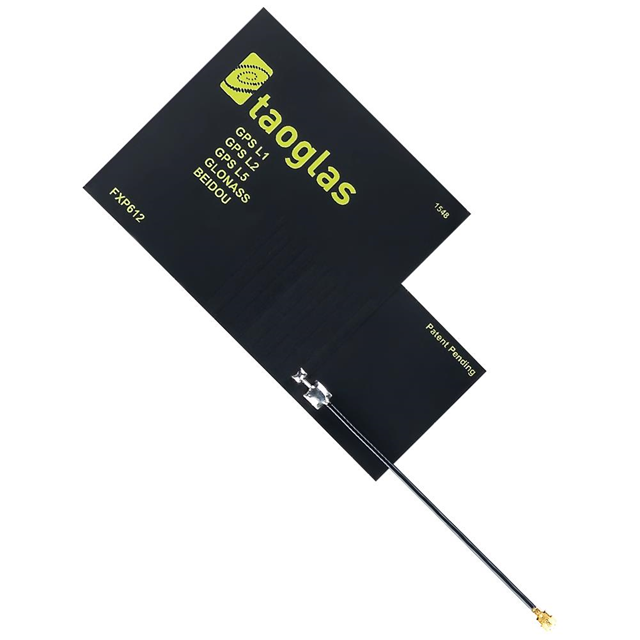

The FXP612.07.0095A is a flexible polymer multi-band GNSS antenna manufactured by Taoglas Limited. It supports GPS L1, L2, L5, Galileo, GLONASS, and BeiDou frequencies. The unit features an I-PEX MHF1 U.FL connector with a 95mm cable length. Physical dimensions are 76x47x0.15mm. Key electrical parameters include a gain of 4 dBi and a VSWR of 1.2. The antenna utilizes adhesive mounting for integration.

Antennas RF Feature Summary

• Flexible polymer construction for embedded applications
• Multi-band support for global navigation satellite systems
• Compact patch form factor with adhesive attachment

Antennas RF Applications

• Telematics
• Fleet Management
• Positioning

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required connector types and cable lengths. Confirm that the adhesive backing meets the mechanical requirements of the target enclosure. Cross-reference the datasheet revision date to ensure alignment with current manufacturing specifications before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when space-constrained designs require a low-profile GNSS solution. The flexible nature allows conformal mounting on curved surfaces. Ensure the host device provides adequate clearance for the 95mm cable routing and connector placement.

Antennas RF Part Context

This model belongs to the FXP612 series of flexible polymer antennas. The series is designed for next-generation GNSS applications requiring robust signal reception across multiple frequency bands while maintaining a minimal physical footprint.

Antennas RF Replacement Considerations

Consult official Taoglas documentation for direct substitutes. Verify that alternative models maintain identical connector interfaces and frequency coverage requirements.
