G280616G151

Overview

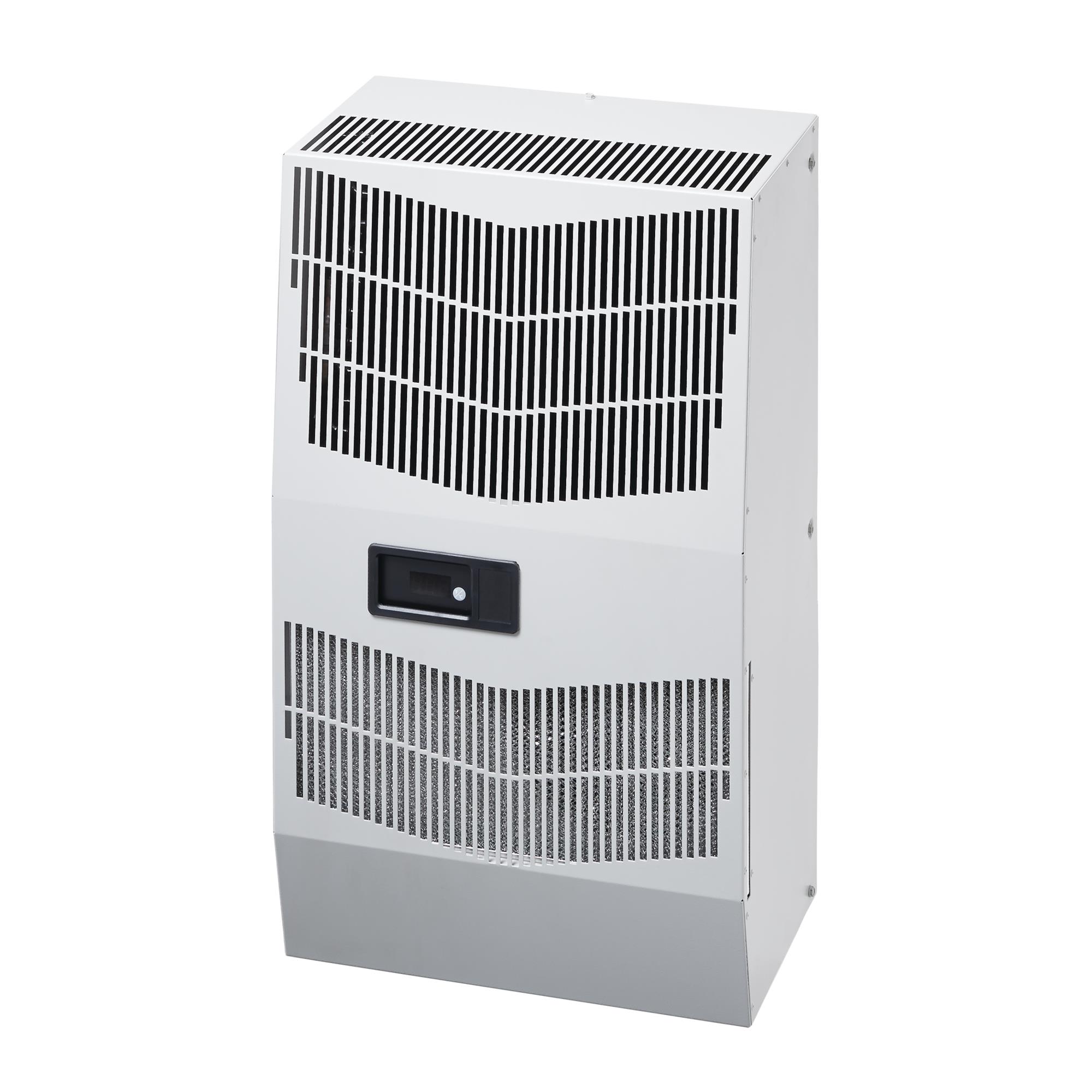

The Hoffman G280616G151 is a SpectraCool indoor/outdoor air conditioner with a nominal cooling capacity of 6000 BTU/Hr. Constructed from Type 304 stainless steel, it operates on 115V at 50/60Hz single phase. The unit features a maximum current draw of 11.4 A and supports an operating temperature range from -40 degrees F to 131 degrees F.

Feature Summary

• Sealed enclosure cooling design suitable for both indoor and outdoor environments
• Constructed from Type 304 stainless steel for durability
• Integrated heating capability alongside cooling functions

Applications

• Floor-mount enclosures
• Wall-mount enclosures
• Narrow enclosures with 12-inch depth

Procurement Notes

Verify the specific voltage configuration matches the site power supply requirements before procurement. Confirm that the physical dimensions of the unit are compatible with the target enclosure opening. Ensure the installation environment falls within the specified operational temperature limits to maintain performance integrity.

Selection Notes

Select this model when a sealed cooling solution is required for harsh indoor or outdoor conditions. It is appropriate for applications needing robust stainless steel construction. Consider the 6000 BTU capacity relative to the heat load generated by internal components within the enclosure volume.

Part Context

This component belongs to the SpectraCool series of narrow outdoor air conditioners manufactured by nVent Hoffman. These units are engineered specifically to fit on deep floor- and wall-mount enclosures. The series provides reliable thermal management for sensitive electronic equipment in demanding industrial settings.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
