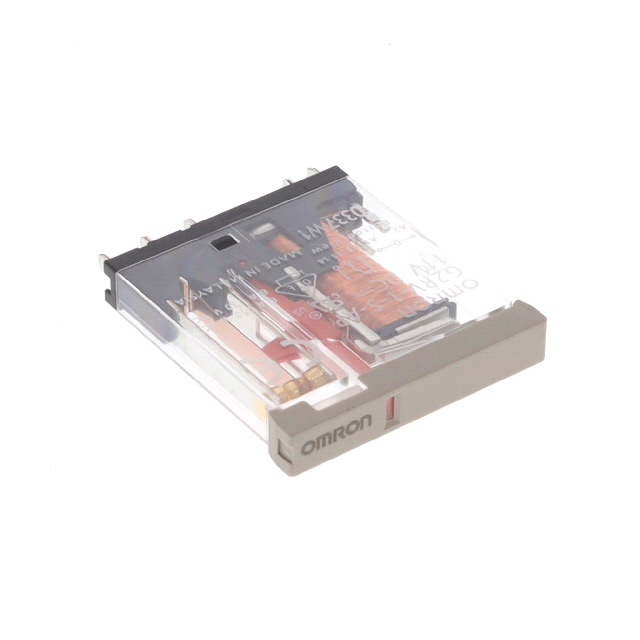

G2RV-1-S-AP DC11

G2RV-1-S-AP DC11 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE SPDT 50MA 12V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for G2RV-1-S-AP DC11

• Description：RELAY GEN PURPOSE SPDT 50MA 12V
• Series：G2RV
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：12VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：50 mA
• Switching Voltage：30VAC, 36VDC - Max
• Load - Max Switching：-
• Coil Current：27.2 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：9.6 VDC
• Must Release Voltage：1.2 VDC
• Operate Time：20 ms
• Release Time：40 ms
• Operating Temperature：-40°C ~ 55°C
• Contact Material：Silver Tin Indium (AgSnIn), Gold (Au)
• Approval Agency：CE, cULus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for G2RV-1-S-AP DC11
