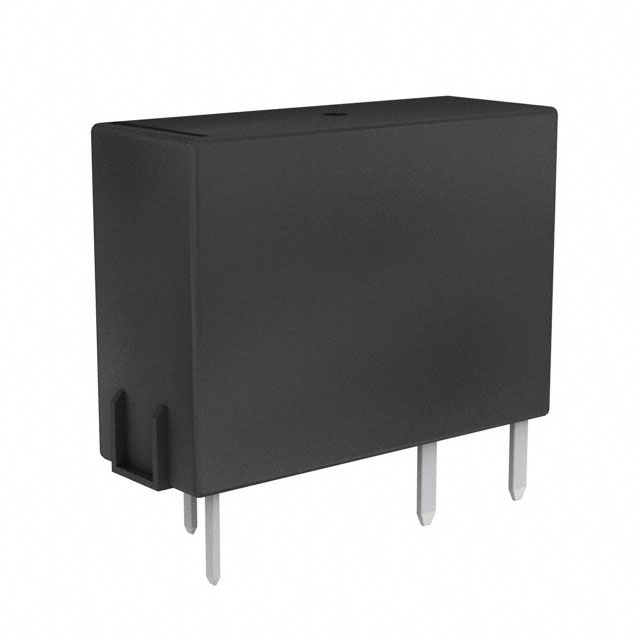

G6D-1A-DC12

G6D-1A-DC12 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 5A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G6D-1A-DC12

• Description：RELAY GEN PURPOSE SPST 5A 12V
• Series：G6D
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：5:00 AM
• Switching Voltage：250VAC, 30VDC - Max
• Load - Max Switching：1250VA, 150W
• Coil Current：16.7 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：8.4 VDC
• Must Release Voltage：1.2 VDC
• Operating Temperature：-25°C ~ 70°C
• Contact Material：Silver Alloy
• Approval Agency：CSA, TUV, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for G6D-1A-DC12
