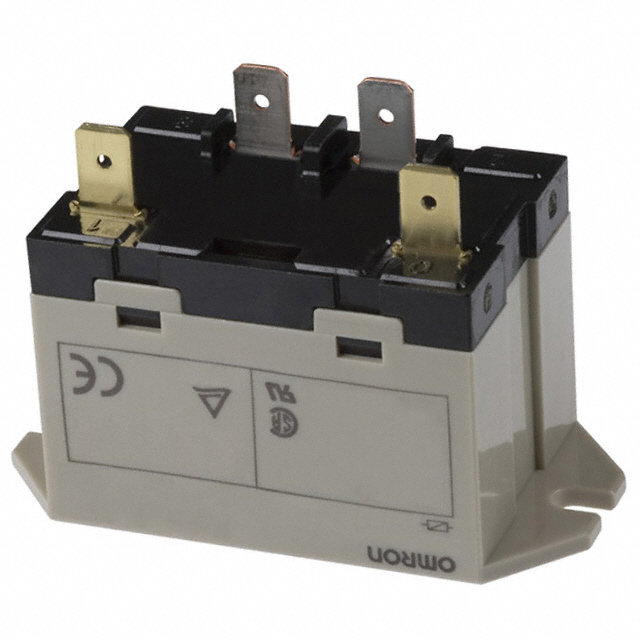

G7L-1A-TUB-J-CB-AC24

G7L-1A-TUB-J-CB-AC24 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 30A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G7L-1A-TUB-J-CB-AC24

• Description：RELAY GEN PURPOSE SPST 30A 24V
• Series：G7L
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：24VAC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：30 A
• Switching Voltage：250VAC - Max
• Load - Max Switching：7500VA
• Coil Current：71 mA
• Coil Type：Non Latching
• Features：Test Button
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：18 VAC
• Must Release Voltage：3.6 VAC
• Operating Temperature：-25°C ~ 60°C
• Contact Material：Silver Alloy
• Approval Agency：CSA, TUV, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：30 ms
• Release Time：30 ms

Power Relays, Over 2 Amps datasheet and documents for G7L-1A-TUB-J-CB-AC24
