G8327A038

Crystals Overview

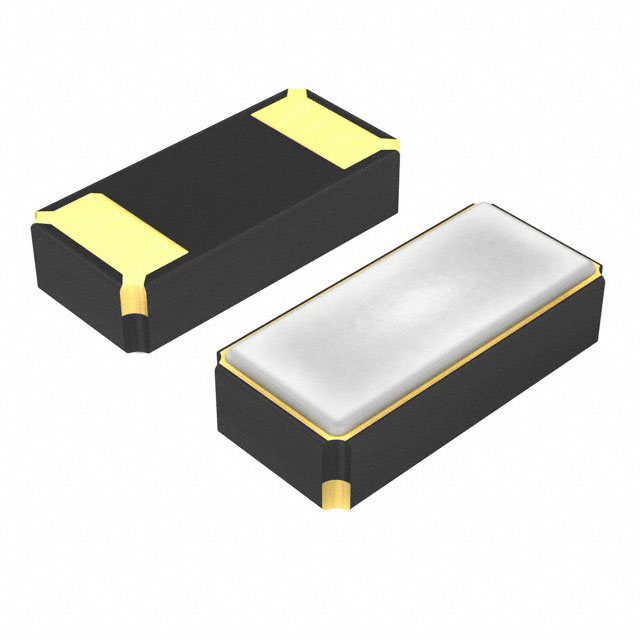

The G8327A038 is a quartz crystal oscillator manufactured by Diodes Incorporated, designed for surface-mount applications. It operates at a fundamental frequency of 32.768 kHz with a load capacitance of 7 pF. The component features a frequency tolerance of ±10 ppm and a frequency stability of 12 ppm. It has an equivalent series resistance (ESR) of 70 kOhms and supports a drive level of 0.5 uW. The device functions within a temperature range of -40°C to +85°C. Its physical dimensions are 3.2 mm in length, 1.5 mm in width, and 0.9 mm in height, housed in a 2-SMD, no-lead package.

Crystals Feature Summary

• Surface-mount quartz crystal construction optimized for compact electronic designs
• High frequency stability suitable for precise timing requirements
• Robust operational capability across extended industrial temperature ranges

Crystals Applications

• Real-time clock circuits in consumer electronics
• Microcontroller system timing references
• Portable device power management systems

Crystals Procurement Notes

Verify the specific ordering suffix against official Diodes Incorporated documentation to ensure correct tolerance and packaging specifications. Confirm RoHS compliance status through the manufacturer's current datasheet or certification documents prior to procurement. Ensure that the supply chain source provides valid traceability records. Cross-reference the part number with authorized distributor catalogs to validate authenticity and avoid counterfeit components during acquisition.

Crystals Selection Notes

Select this component when a 32.768 kHz reference signal is required for low-power timing applications. Consider the 7 pF load capacitance requirement to ensure circuit compatibility with the host oscillator design. Evaluate the ±10 ppm tolerance against the system's timing accuracy needs. Verify that the SMD package dimensions fit the available PCB real estate and that the operating temperature range meets the environmental constraints of the final assembly.

Crystals Part Context

This component belongs to the G8 series of crystals from Diodes Incorporated, which focuses on standard frequency solutions for general-purpose timing. It serves as a passive timing element distinct from active oscillators, requiring an external driver circuit. The product line targets cost-effective integration into mass-produced electronic devices where reliable clock generation is essential for synchronization and data processing tasks.

Crystals Replacement Considerations

Consult official cross-reference lists for verified substitutes. Ensure replacement parts match the 32.768 kHz frequency, 7 pF load capacitance, and 3.2x1.5 mm footprint. Verify identical ESR and tolerance specifications to maintain circuit performance.
