GEC32SABN-M30

Headers, Male Pins Overview

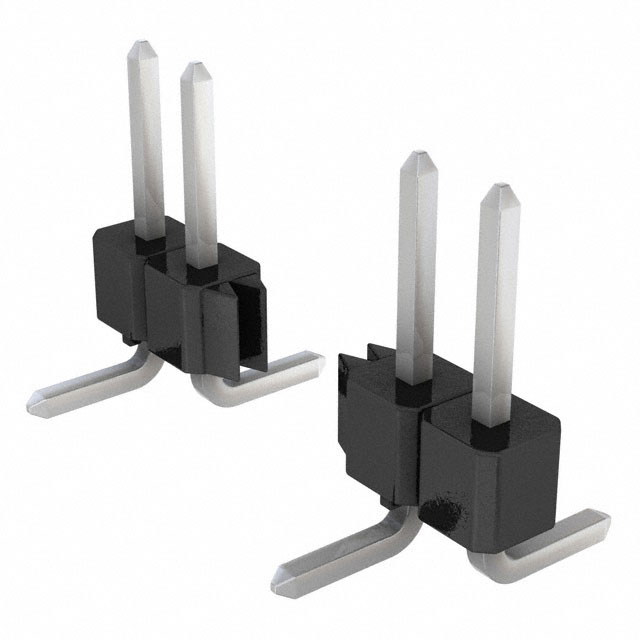

The GEC32SABN-M30 is a rectangular connector from Sullins Connector Solutions, classified under headers and male pins. It features a single row with 32 positions and a pitch of 0.100 inches (2.54 mm). The component utilizes phosphor bronze contacts with a tin finish and is designed for surface mount termination. The housing is constructed from polyamide (PA9T) nylon in black, rated UL94 V-0, and supports an operating temperature range of -65°C to 150°C.

Headers, Male Pins Feature Summary

• Surface mount design with breakaway header style for flexible board integration
• High-temperature resistant insulation material suitable for demanding thermal environments
• Unshrouded configuration with push-pull retention mechanism

Headers, Male Pins Applications

• Board-to-board interconnections requiring high-temperature stability
• Cable-to-board assemblies utilizing unshrouded male pin configurations
• Industrial electronic systems operating within extended thermal ranges

Headers, Male Pins Procurement Notes

Verify the specific manufacturer part number against official Sullins Connector Solutions documentation to confirm current availability status. Note that distributor records may indicate discontinued status; always cross-reference with the latest manufacturer catalogs or direct technical support channels before finalizing procurement plans to ensure supply chain continuity.

Headers, Male Pins Selection Notes

Select this component when a single-row, surface-mount male header with a 2.54 mm pitch is required. Ensure the application environment remains within the specified -65°C to 150°C operational range. Confirm that the unshrouded design aligns with spatial constraints and mating interface requirements for the target PCB assembly.

Headers, Male Pins Part Context

This part belongs to the GxCxxSABN-M30 series of male breakaway headers. It is categorized under rectangular connectors and is specifically engineered for surface mount applications. The series emphasizes high-temperature performance using PA9T insulation, distinguishing it from standard nylon-based connectors in similar form factors.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official Sullins Connector Solutions replacement guides or engineering change notices for verified alternatives.
