GSFH0625

Single FETs, MOSFETs Overview

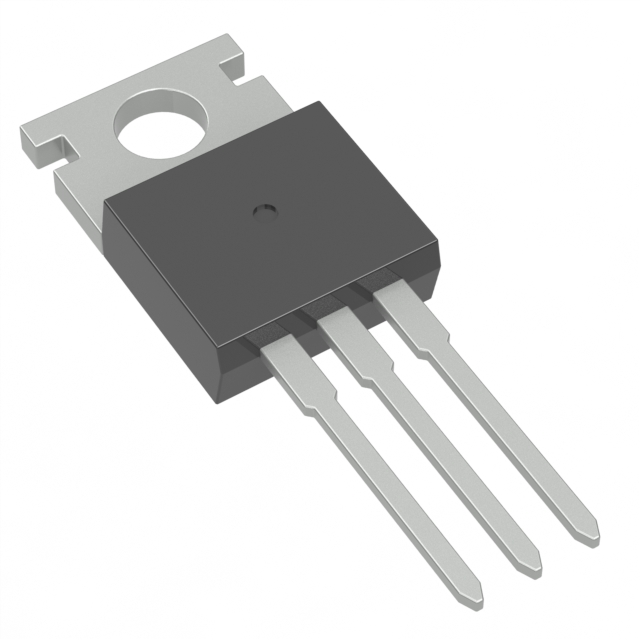

The GSFH0625 is a 60V P-Channel MOSFET manufactured by Good-Ark Semiconductor, designed for high-efficiency switched mode power supplies. It features an advanced process technology achieving low on-resistance and low gate charge. Key electrical parameters include a drain-source voltage of -60V, continuous drain current of -25A at 25°C, and a maximum on-state resistance of 45mΩ at VGS=-10V. The device operates within a junction temperature range of -55°C to +150°C and utilizes a TO-220 package.

Single FETs, MOSFETs Feature Summary

• Advanced MOSFET process technology for high cell density
• Low on-resistance combined with low gate charge
• Fast switching and reverse body recovery capabilities

Single FETs, MOSFETs Applications

• High efficiency switched mode power supplies
• General purpose power switching applications

Single FETs, MOSFETs Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with design requirements. Confirm that the TO-220 package dimensions and thermal characteristics align with the intended heat dissipation strategy. Cross-reference electrical limits such as breakdown voltage and current ratings with system specifications before integration.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring efficient power management in switched mode environments. The low on-resistance minimizes conduction losses, while fast switching characteristics support higher frequency operations. Ensure adequate thermal management is provided given the power dissipation ratings and operating temperature constraints.

Single FETs, MOSFETs Part Context

This component belongs to the discrete semiconductor category, specifically within the MOSFET product line offered by Good-Ark Semiconductor. The manufacturer specializes in surface mount, through-hole, and wafer devices. This particular model represents their focus on high-efficiency power solutions utilizing modern fabrication techniques.

Single FETs, MOSFETs Replacement Considerations

Consult official substitution lists or datasheets for compatible alternatives. Verify pinout compatibility, voltage ratings, and current handling capabilities when considering cross-references from other manufacturers.
