GSFW3004

$0.20

Description：MOSFET, N-CH, SINGLE, 0.40A, 30V
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:709eefbf5088 Category: Single FETs, MOSFETs Brand: Good-Ark Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

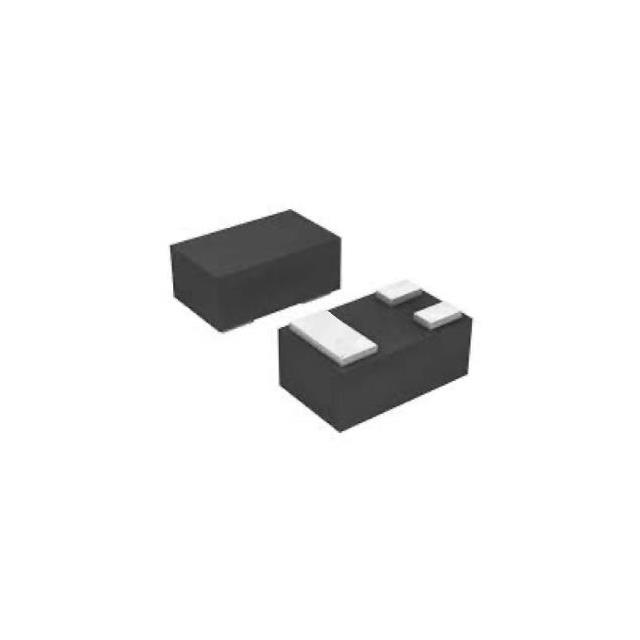

GSFW3004 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is MOSFET, N-CH, SINGLE, 0.40A, 30V. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for GSFW3004

Description：MOSFET, N-CH, SINGLE, 0.40A, 30V
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：30 V
Current - Continuous Drain (Id) @ 25°C：400mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)：2.5V, 4.5V
Rds On (Max) @ Id, Vgs：560mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id：1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：5.2 nC @ 4.5 V
Vgs (Max)：±12V
Input Capacitance (Ciss) (Max) @ Vds：72.9 pF @ 15 V
FET Feature：-
Power Dissipation (Max)：155mW (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：SOT-883
Package / Case：SC-101, SOT-883

Single FETs, MOSFETs datasheet and documents for GSFW3004

GSFW3004

Single FETs, MOSFETs Overview

The GSFW3004 is a 30V N-Channel MOSFET manufactured by Good-Ark Semiconductor, housed in an SOT-883 package. It features a maximum drain-source voltage (BVDSS) of 30V and a continuous drain current (ID) of 400mA at TC=25°C. The device exhibits a low on-resistance (RDS(ON)) of 560mΩ at VGS=4.5V and ID=0.2A. Key electrical parameters include a gate threshold voltage (VGS(th)) ranging from 0.5V to 1.2V, a total gate charge (Qg) of up to 5.2nC, and a reverse recovery time (Trr) of 13ns. The component operates within a junction temperature range of -55°C to +150°C.

Single FETs, MOSFETs Feature Summary

Utilizes advanced MOSFET process technology for high cell density
Designed for high efficiency switched mode power supplies
Features low on-resistance combined with low gate charge
Provides fast switching capabilities and reverse body recovery

Single FETs, MOSFETs Applications

High efficiency switch mode power supplies
General purpose switching applications requiring low voltage operation

Single FETs, MOSFETs Procurement Notes

Verify the specific marking code corresponding to the production lot when ordering, as indicated by the X** notation in the order information. Confirm that the SOT-883 tape and reel packaging meets your automated assembly requirements. Ensure compatibility with the specified thermal management conditions for continuous drain current ratings.

Single FETs, MOSFETs Selection Notes

Select this component for circuits requiring a 30V N-Channel MOSFET with compact SOT-883 footprint. Consider the 560mΩ RDS(ON) at 4.5V drive for low-loss switching. Evaluate the 400mA continuous current limit against peak load demands. Verify that the 1.2V maximum gate threshold voltage aligns with the logic level control signals available in the design.

Single FETs, MOSFETs Part Context

Good-Ark Semiconductor produces discrete semiconductor devices including MOSFETs and diodes. The GSFW3004 belongs to their low-voltage N-Channel MOSFET lineup, designed for modern electronics requiring small form factors and efficient power handling. The manufacturer provides detailed datasheets specifying absolute maximum ratings and electrical characteristics for integration support.
