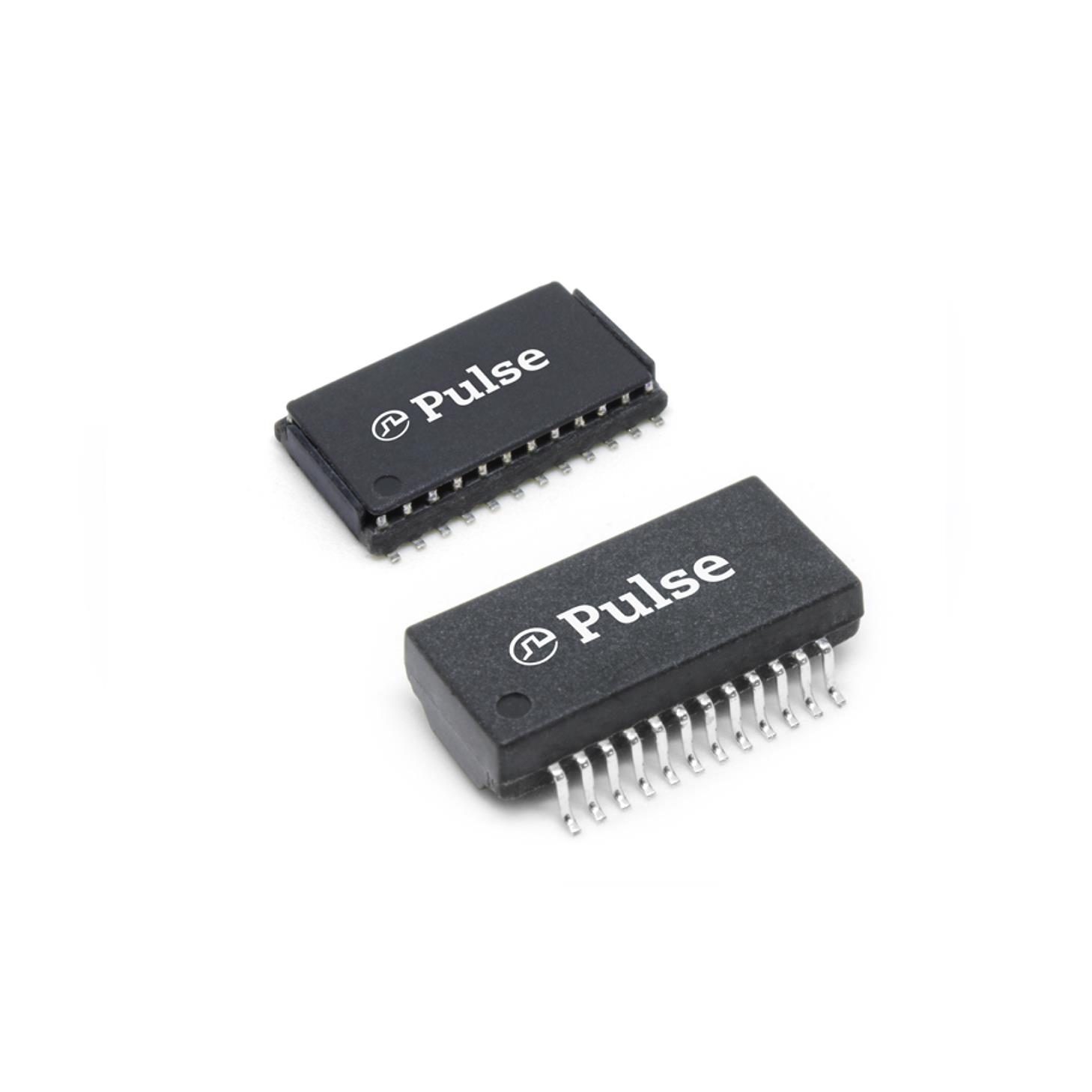

GST5009C LF

$6.71

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:aade2ef97b63 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GST5009C LF is listed in the Pulse Transformers range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is MDL 1G SINGLE PORT N/A. Review the specifications below when checking this part for your BOM.

Pulse Transformers specifications for GST5009C LF

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.594" L x 0.280" W (15.10mm x 7.10mm)
Height - Seated (Max)：0.157" (4.00mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Pulse Transformers datasheet and documents for GST5009C LF

GST5009C LF

Pulse Transformers Overview

The GST5009C LF is a single-port LAN pulse transformer designed for 1000 Base-T applications. It features a 350µH inductance with a 1:1CT turns ratio for both transmitter and receiver channels. The component utilizes a surface-mount package measuring 15.10mm x 7.10mm with a maximum height of 4.00mm. It operates within a temperature range of -40°C to +85°C and complies with RoHS3 standards.

Pulse Transformers Feature Summary

Supports Gigabit Ethernet (1000 Base-T) data transmission
Integrated common mode choke functionality
Surface mount construction for automated assembly

Pulse Transformers Applications

Gigabit Ethernet network interface cards
Ethernet switch port circuits
Network adapter modules

Pulse Transformers Procurement Notes

Verify the specific suffix 'C' against the datasheet to confirm pinout and electrical tolerances, as variations exist within the GST5009 series. Ensure the ordering part number matches the required packaging format, such as tape and reel or cut tape, to align with production line requirements.

Pulse Transformers Selection Notes

Select this component for designs requiring a compact, single-port solution for Gigabit Ethernet. Confirm that the PCB footprint accommodates the 15.10mm x 7.10mm dimensions and 4.00mm height. Validate thermal management capabilities against the specified operating temperature range during system integration.

Pulse Transformers Part Context

This component belongs to Pulse Electronics' LAN transformer portfolio, specifically engineered for high-speed data communication. It serves as a critical isolation and impedance matching element in Ethernet physical layer circuits, ensuring signal integrity across network connections.
