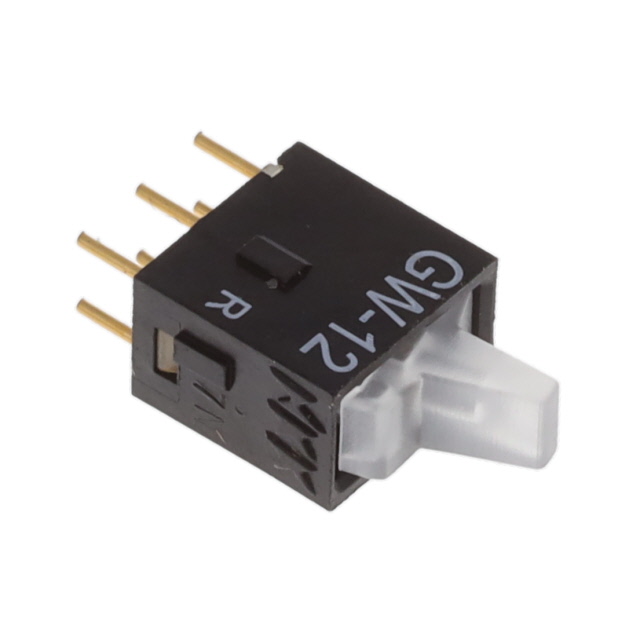

GW12LJPC

GW12LJPC is listed in the Rocker Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH ROCKER SPDT 0.4VA 28V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for GW12LJPC

• Description：SWITCH ROCKER SPDT 0.4VA 28V
• Series：GW
• Mfr：NKK Switches
• Package：Tray
• Mounting Type：Through Hole
• Circuit：SPDT
• Switch Function：On-On
• Current Rating (Amps)：0.4VA (AC/DC)
• Voltage Rating - AC：28 V
• Voltage Rating - DC：28 V
• Actuator Type：Paddle - Illuminated
• Color - Actuator/Cap：Clear
• Actuator Marking：No Marking
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：2 VDC
• Termination Style：PC Pin
• Ingress Protection：-
• Features：Sealed - Flux Protection
• Panel Cutout Dimensions：-
• Operating Temperature：-25°C ~ 55°C
• Approval Agency：CSA, UL

Rocker Switches datasheet and documents for GW12LJPC
