H1651CG

Pulse Transformers Overview

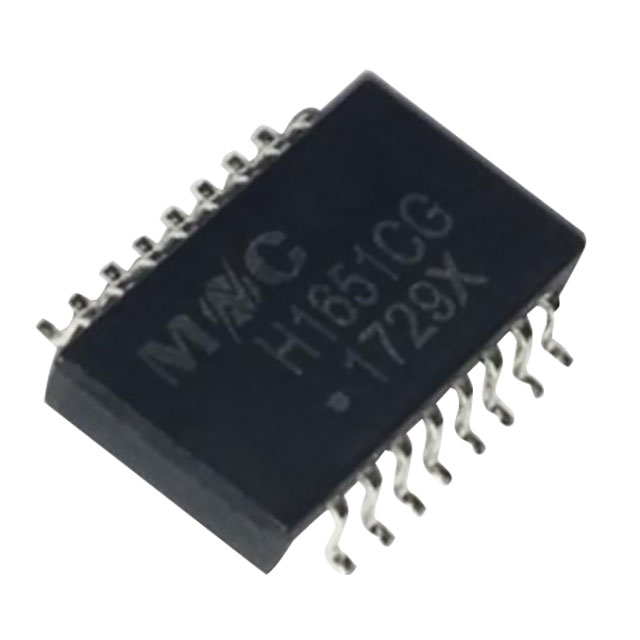

The H1651CG is a single-port LAN pulse transformer manufactured by Mentech Technology USA Inc., designed for 10/100 Base-T Ethernet applications. It features a surface mount package with an integrated RJ45 female 8P8C connector, eliminating the need for separate jack assembly. The component operates within a temperature range of 0°C to +70°C and complies with RoHS standards. Key electrical specifications include a minimum inductance of 350µH and a turns ratio of 1CT:1CT. The unit provides 1.5kV isolation capability, ensuring signal integrity and safety in network data communication environments.

Pulse Transformers Feature Summary

• Integrates a surface mount RJ45 female 8P8C connector for simplified PCB assembly
• Provides galvanic isolation for 10/100 Base-T Ethernet signal transmission
• Complies with RoHS environmental directives for restricted hazardous substances

Pulse Transformers Applications

• Single-port Ethernet connectivity modules
• Network interface cards (NICs)
• Ethernet switches and routers
• Computer motherboards with integrated LAN ports

Pulse Transformers Procurement Notes

Verify the specific datasheet version, as Mentech product specifications may undergo revisions. Confirm that the required operating temperature range of 0°C to +70°C aligns with your system's thermal design. Ensure the surface mount footprint matches your PCB layout constraints. Check for any specific ordering suffixes that might indicate packaging variations or updated compliance certifications before finalizing procurement orders.

Pulse Transformers Selection Notes

Select this component when a compact, single-port solution for 10/100 Base-T networks is required. The integrated RJ45 connector reduces bill-of-materials complexity compared to discrete transformer and jack combinations. Consider the 350µH minimum inductance for standard Ethernet signaling requirements. Evaluate the surface mount form factor against available board space and automated assembly capabilities.

Pulse Transformers Part Context

Mentech Technology USA Inc. specializes in magnetic components for communication equipment. The H1651CG belongs to their LAN transformer series, targeting high-volume consumer and industrial networking devices. This part represents a consolidated magnetic solution, combining pulse transformation and physical layer connectivity into a single surface-mountable unit, facilitating efficient manufacturing processes for Ethernet-enabled hardware.
