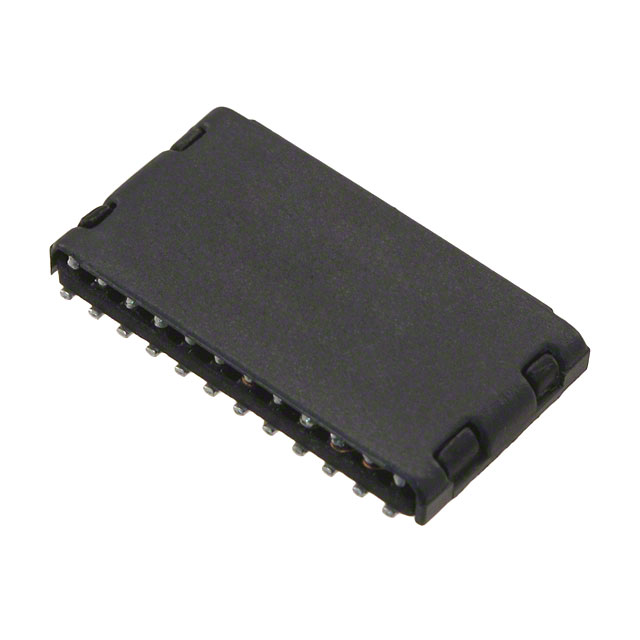

H5120NLT

$7.57

Description：MODULE MAGNETIC 1PORT 1000BASE-T
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:47b52391c233 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE MAGNETIC 1PORT 1000BASE-T
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：Isolation and Data Interface (Encapsulated)
Inductance：-
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.650" L x 0.365" W (16.51mm x 9.27mm)
Height - Seated (Max)：0.082" (2.08mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

H5120NLT

Overview

The H5120NLT is a single-port LAN transformer module designed for 1000Base-T applications. It features a surface-mount package with dimensions of 16.51mm length, 9.27mm width, and 2.08mm height. The component operates within a temperature range of 0°C to 70°C. Key electrical specifications include an inductance of 350µH, a turns ratio of 1CT:1CT, and an isolation voltage of 1.5kVrms. It supports gull-wing SMD termination.

Feature Summary

Integrated magnetic module for Gigabit Ethernet signal transmission
Surface mount construction with gull-wing terminals
High insulation voltage capability for safety isolation

Applications

1000Base-T network interface cards
Gigabit Ethernet switches
Network infrastructure equipment

Procurement Notes

Verify the specific suffix 'T' indicates the tape-and-reel packaging variant distinct from tube-packaged equivalents. Confirm RoHS compliance status and MSL rating prior to assembly. Cross-reference manufacturer part numbers with distributor codes to ensure correct sourcing of the 1000Base-T rated component.

Selection Notes

Select this model for designs requiring a compact, single-port solution for Gigabit Ethernet connectivity. Ensure the PCB footprint matches the 16.51mm x 9.27mm outline. Consider the operating temperature range of 0°C to 70°C against environmental requirements. Verify compatibility with non-PoE or PoE architectures as specified by the system design.

Part Context

This component belongs to Pulse Electronics' LAN transformer series. It serves as a critical passive element in Ethernet physical layer circuits. The module integrates primary and secondary windings into a single surface-mount device. It replaces discrete transformer components to save board space.

Replacement Considerations

HX5120NLT is a related variant with extended temperature ratings (-40°C to 85°C). Verify pinout and mechanical compatibility before substitution. Check datasheet differences regarding thermal performance and impedance matching.
