H6062NL

Pulse Transformers Overview

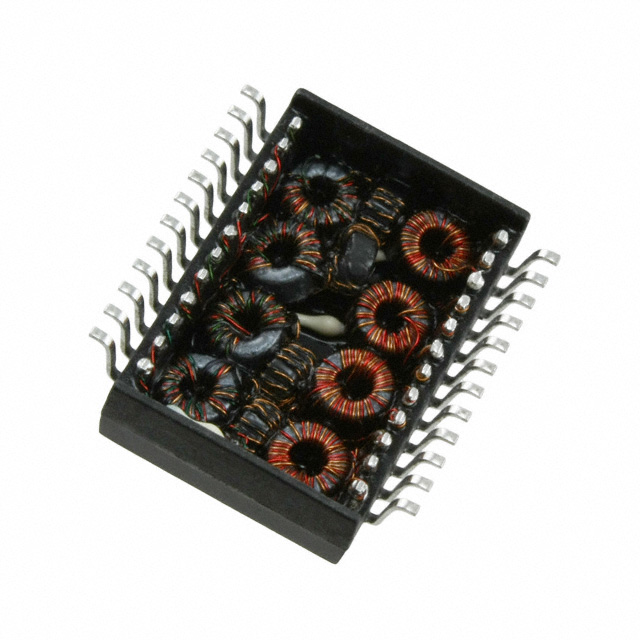

The H6062NL is a single-port LAN transformer module manufactured by Pulse Electronics, designed for 1000Base-T Gigabit Ethernet applications. It supports Power over Ethernet (PoE) functionality and features surface-mount technology (SMD/SMT) termination. The component operates within a frequency range of 1 MHz to 125 MHz and provides an insulation voltage of 1.5 kV. Key electrical parameters include an inductance of 350 uH and a DC resistance of 0.65 Ohms. The physical dimensions are 17.53 mm in length, 12.2 mm in width, and 5.51 mm in height. It functions with a 1:1 turns ratio for both transmitter and receiver paths.

Pulse Transformers Feature Summary

• Supports 1000Base-T Gigabit Ethernet data transmission standards
• Enables Power over Ethernet (PoE) power delivery alongside data signals
• Provides high isolation capability with 1.5 kV insulation voltage rating

Pulse Transformers Applications

• Gigabit Ethernet network interface cards
• PoE-enabled network switches and hubs
• Industrial Ethernet communication modules

Pulse Transformers Procurement Notes

Verify the specific ordering suffix to confirm packaging type, as the base part number may correspond to tube packaging while variants like H6062NLT indicate reel or cut tape options. Confirm RoHS compliance status and moisture sensitivity level requirements against project specifications before finalizing procurement orders to ensure supply chain compatibility.

Pulse Transformers Selection Notes

Select this component when designing circuits requiring integrated PoE support for single-port Gigabit Ethernet connections. Ensure the PCB layout accommodates the specified SMD footprint dimensions of 17.53 mm by 12.2 mm. Consider the operating temperature range of 0°C to +70°C for environmental suitability in the target application environment.

Pulse Transformers Part Context

This component belongs to the Star Magnetics series of audio and signal transformers produced by Pulse Electronics. It falls under the LAN Transformers subcategory, specifically engineered for high-speed data communication networks. The product is currently active and supported with available documentation including datasheets and mechanical drawings for design integration.

Pulse Transformers Replacement Considerations

The H5062NL serves as a related variant but lacks PoE support, making it suitable only for non-PoE 1000Base-T applications. Direct substitution requires verifying PoE requirements; if PoE is necessary, the H6062NL is required. Check for updated PCNs regarding marking changes from ink to laser which do not alter functional specifications.
