Product Detailed Parameters
- Description：PULSE XFMR 1CT:1CT TX/RX
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transformer Type：LAN 10/100/1000 Base-T
- Inductance：120µH, 350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
- Mounting Type：Surface Mount
- Size / Dimension：1.095" L x 0.480" W (27.81mm x 12.19mm)
- Height - Seated (Max)：0.285" (7.24mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview

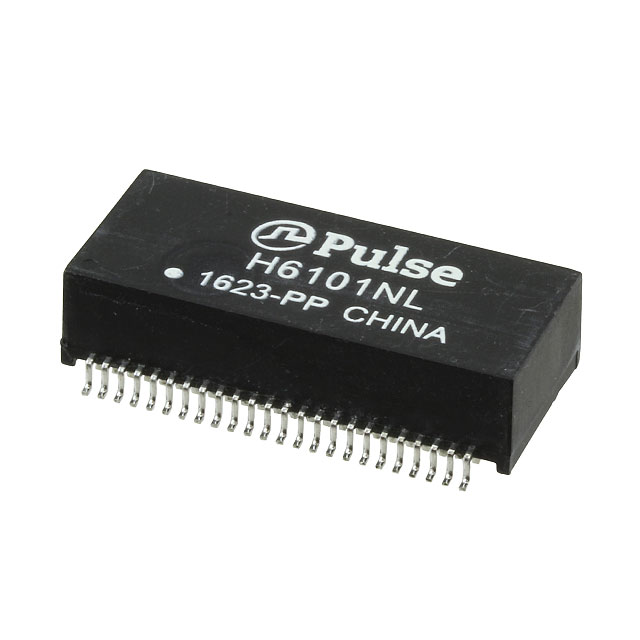

The H6101NLT is a LAN transformer from Pulse Electronics designed for 10/100/1000 Base-T applications. It features a surface mount package with dimensions of 27.81mm length, 12.19mm width, and a maximum height of 7.24mm. The component operates within a temperature range of 0°C to 70°C. Electrical specifications include primary inductance values of 120µH and 350µH. The transformer utilizes a 1CT:1CT turns ratio for both transmitter and receiver circuits.
Feature Summary
- Supports Gigabit Ethernet data transmission standards
- Integrated transmitter and receiver circuit isolation
- Surface mount construction for automated assembly
Applications
- Gigabit Ethernet network interface cards
- Ethernet switch port interfaces
- Industrial networking equipment
Procurement Notes
Verify the specific datasheet version when sourcing, as manufacturer documentation may reference variations such as H6101NL. Confirm that the received components match the required 1CT:1CT configuration for both transmit and receive channels. Ensure the supplier provides official traceability documents to guarantee compliance with the stated electrical parameters and RoHS status.
Selection Notes
Select this component for designs requiring integrated signal conditioning for Gigabit Ethernet PHY connections. The specified inductance values support standard impedance matching requirements. Consider the operating temperature range of 0°C to 70°C against environmental conditions. The physical footprint must accommodate the 27.81mm by 12.19mm dimensions on the PCB layout.
Part Context
This part belongs to the Pulse Electronics LAN transformer family, specifically engineered for high-speed data communication. It serves as a critical isolation component between the PHY chip and the magnetics module. The design ensures signal integrity while providing necessary galvanic isolation for network safety and noise rejection in compliant Ethernet infrastructure.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing board layouts before considering alternative suppliers or generic equivalents.
