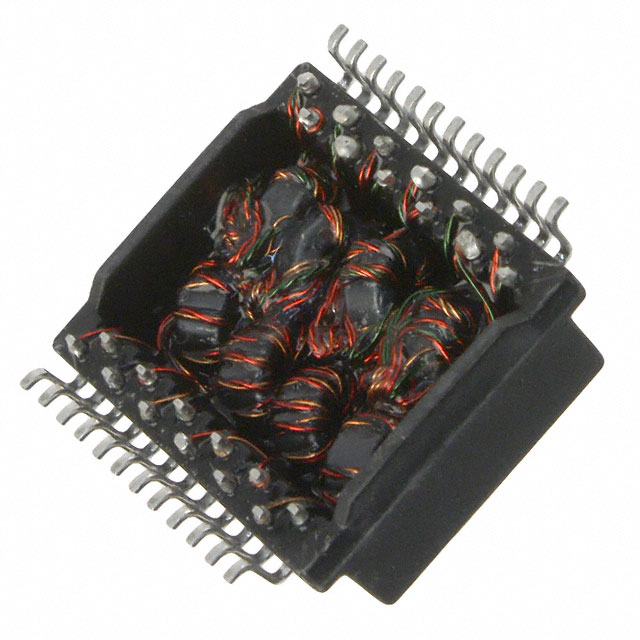

H7008NL
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：TRANSFORMER MODULE 10GBASE-T
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Transformer Type：Isolation and Data Interface (Encapsulated)
- Inductance：-
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：-
- Mounting Type：Surface Mount
- Size / Dimension：0.539" L x 0.480" W (13.70mm x 12.20mm)
- Height - Seated (Max)：0.235" (5.97mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview
The H7008NL is a quad-channel surface-mount transformer module designed for 10GBASE-T applications. It features a 24-terminal gull-wing package and provides 1:1 isolation with an insulation voltage of 1.5 kV. The primary and secondary coil impedances are both rated at 1 Ohm. This component supports high-speed data transmission standards required for modern networking infrastructure.
Feature Summary
- Quad-channel architecture supporting 10GBASE-T Ethernet standards
- Surface-mount construction with 24-pin gull-wing terminals
- High insulation voltage rating of 1.5 kV for signal integrity
Applications
- 10 Gigabit Ethernet network interfaces
- Server and switch motherboard connectivity
- High-speed data communication equipment
Procurement Notes
Verify the specific revision suffix against the manufacturer's current documentation to ensure compatibility with latest design requirements. Confirm that the 24-pin gull-wing footprint matches the target PCB layout. Check RoHS compliance status as per the most recent datasheet release. Ensure storage conditions align with moisture sensitivity level specifications provided in the official product guidelines.
Selection Notes
Select this component when designing for 10GBASE-T physical layer interfaces requiring compact surface-mount solutions. The quad-channel configuration simplifies board space compared to discrete transformers. Verify impedance matching requirements against the transceiver specifications. Consider thermal management capabilities within the operating temperature range defined by the manufacturer.
Part Context
This part belongs to Pulse Electronics' portfolio of passive components for telecommunications. It serves as a critical interface element between the MAC and PHY layers in Ethernet controllers. The module integrates multiple windings into a single shielded unit to reduce electromagnetic interference and improve signal quality in dense circuit designs.
Replacement Considerations
H7008FNL is listed as a comparable variant from the same manufacturer. Verify pinout compatibility and electrical parameters before substitution. Cross-reference with other 10GBASE-T modules if form factor constraints differ.
