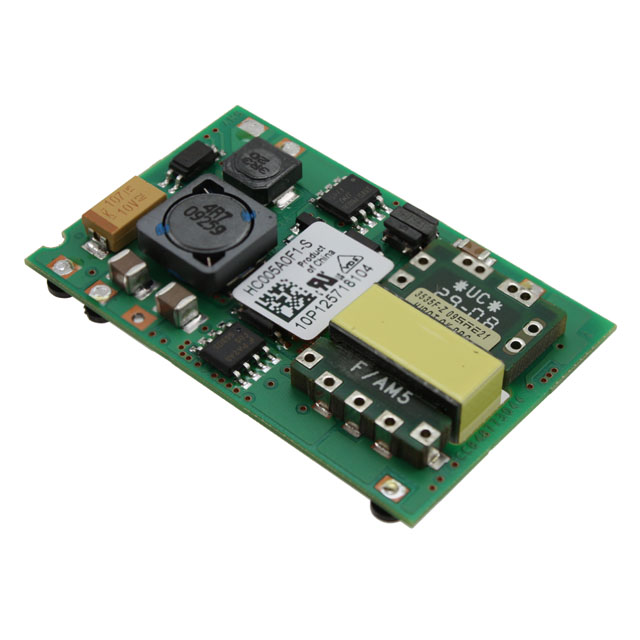

HC005A0F1-S

HC005A0F1-S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 3.3V 17W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for HC005A0F1-S

• Description：DC DC CONVERTER 3.3V 17W
• Series：HC005
• Mfr：OmniOn Power™
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：17 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：86%
• Mounting Type：Surface Mount
• Package / Case：18-SMD Module, 6 Leads
• Size / Dimension：1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.6mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
