HCTC-2.5-12.5

$4.85

Description：CMC 2.5MH 12.5A 2LN TH
Series：HCTC
Mfr：Signal Transformer
Package：Tray

SKU:48f6ae443a73 Category: Common Mode Chokes Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HCTC-2.5-12.5 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is CMC 2.5MH 12.5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HCTC-2.5-12.5

Description：CMC 2.5MH 12.5A 2LN TH
Series：HCTC
Mfr：Signal Transformer
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：12.5A
DC Resistance (DCR) (Max)：11mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.450" L x 0.600" W (36.83mm x 15.24mm)
Height (Max)：1.500" (38.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.5 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HCTC-2.5-12.5

HCTC-2.5-12.5

Common Mode Chokes Overview

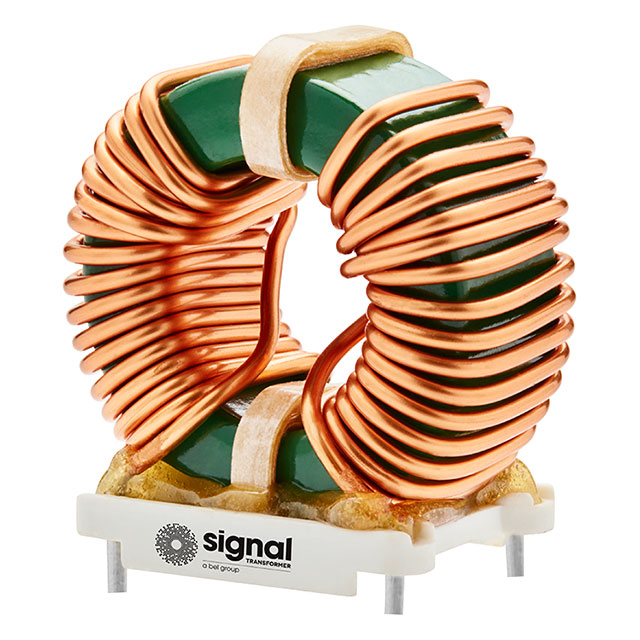

The Signal Transformer HCTC-2.5-12.5 is a high-current toroidal common mode choke designed for through-hole mounting. It features a 2.5 mH inductance measured at 1 kHz and supports a maximum current rating of 12.5 A. The component exhibits a maximum DC resistance (DCR) of 11 mOhm. It utilizes a vertical radial package with four leads, suitable for printed circuit board integration in power supply applications requiring effective noise suppression.

Common Mode Chokes Feature Summary

High-current toroidal core construction for efficient magnetic performance
Dual-line common mode filtering capability
Through-hole vertical radial leaded package design

Common Mode Chokes Applications

Power supply input filtering
EMI noise suppression in AC/DC converters
Industrial control equipment power stages

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and thermal ratings. Ensure the selected supplier provides original manufacturer documentation. Cross-reference the part number with official Signal Transformer catalogs to avoid counterfeit components. Confirm compliance requirements such as RoHS status before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when high current handling up to 12.5 A is required alongside significant common mode noise attenuation. The low DCR minimizes power loss during operation. Consider the physical footprint of the vertical radial package for PCB layout constraints. Evaluate the 2.5 mH inductance value against the target frequency range for optimal filtering performance.

Common Mode Chokes Part Context

This component belongs to the HCTC series of high-current toroidal chokes manufactured by Signal Transformer. The series focuses on robust magnetic designs capable of handling substantial currents while maintaining compact form factors. These chokes are engineered for reliability in demanding power electronics environments.
