Product Detailed Parameters

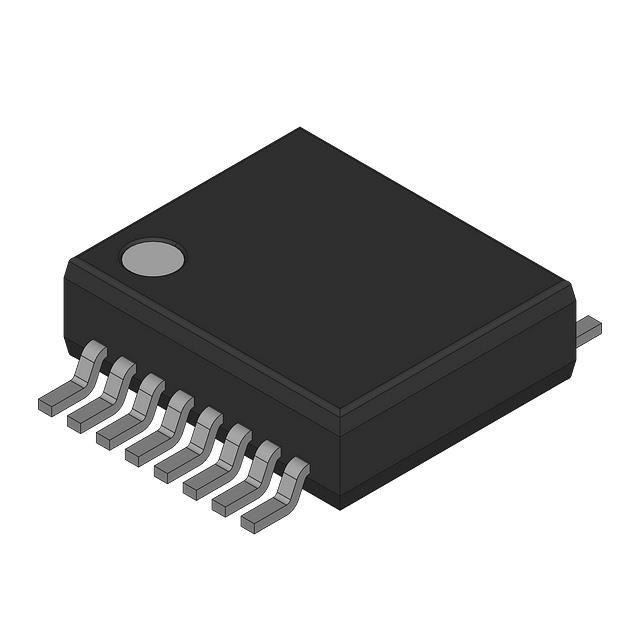

- Description：NEXPERIA HEF4051B - 8-CHANNEL AN
- Series：*
- Mfr：Nexperia USA Inc.
- Package：Bulk
- Switch Circuit：-
- Multiplexer/Demultiplexer Circuit：-
- On-State Resistance (Max)：-
- Channel-to-Channel Matching (ΔRon)：-
- Voltage - Supply, Single (V+)：-
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：-
- -3db Bandwidth：-
- Charge Injection：-
- Channel Capacitance (CS(off), CD(off))：-
- Current - Leakage (IS(off)) (Max)：-
- Crosstalk：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Number of Circuits：-
- Grade：-
- Qualification：-
Download product information
Overview
The HEF4051BTS,118 is a CMOS analog multiplexer/demultiplexer manufactured by Nexperia USA Inc. It features an 8-channel configuration in a 16-SSOP surface-mount package. The device operates on a single supply voltage ranging from 3 V to 15 V. Key electrical parameters include a maximum on-resistance of 155 Ohms and a channel-to-channel matching of 5 Ohms. The component supports a -3dB bandwidth of 70 MHz with a typical off-isolation of -50 dB at 1 MHz. Leakage current is specified at a maximum of 200 nA, and the unit weighs approximately 173 mg.
Feature Summary
- Provides eight independent analog signal paths for multiplexing or demultiplexing applications
- Utilizes low-leakage CMOS technology for efficient signal switching
- Offers high bandwidth capability suitable for audio and video signal routing
Applications
- Audio and video signal routing systems
- Data acquisition systems requiring analog channel selection
- Communication equipment signal path management
Procurement Notes
This specific part number, HEF4051BTS,118, is officially listed as obsolete and no longer manufactured by Nexperia. Procurement efforts should focus on verifying the authenticity of remaining stock from authorized distributors. Engineers must confirm that any available units are genuine components and not counterfeit replacements before integration into production designs.
Selection Notes
Designers requiring this functionality should consider the active successor variant, HEF4051BTT,118, which maintains similar specifications but utilizes a TSSOP-16 package. Alternatively, the automotive-grade HEF4051BT-Q100,118 offers extended temperature ranges up to +125 C and AEC-Q100 qualification. Selection depends on package preference and environmental operating requirements.
Part Context
The HEF4051B series belongs to Nexperia's standard CMOS logic family, specifically designed for analog switching applications. This component represents the SSOP package version of the widely used HEF4051 multiplexer. It serves as a foundational building block for creating complex analog signal routing networks within electronic circuits.
Replacement Considerations
The HEF4051BTT,118 is the direct package alternative using TSSOP-16. For automotive applications, the HEF4051BT-Q100,118 provides AEC-Q100 qualification. Cross-reference with other manufacturers' 4051-compatible parts if pinout compatibility is required.
