HHBC12-1R0A0051V

$4.00

Description：CMC 51UH 5A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk

SKU:2111f8f90eac Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HHBC12-1R0A0051V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 51UH 5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HHBC12-1R0A0051V

Description：CMC 51UH 5A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：28mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.024" Dia (26.00mm)
Height (Max)：1.024" (26.00mm)
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：51 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HHBC12-1R0A0051V

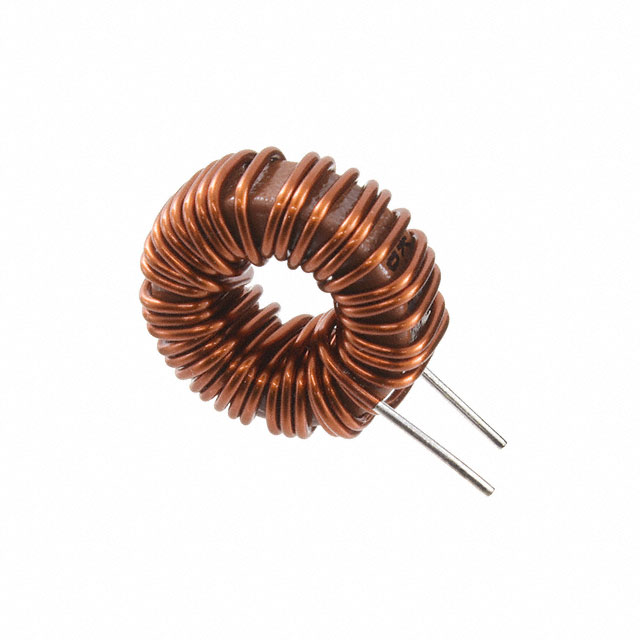

HHBC12-1R0A0051V

Common Mode Chokes Overview

The KEMET HHBC12-1R0A0051V is a through-hole toroidal inductor from the HHBC series, designed as a normal mode choke. It features an inductance of 51 µH with a tolerance of ±20%. The component supports a maximum DC current of 5 A and has a maximum DC resistance of 28 mΩ. It operates within a temperature range of -40 °C to +125 °C and utilizes Fe-Si dust core material for balanced core loss and DC superposition characteristics.

Common Mode Chokes Feature Summary

Utilizes Fe-Si dust core material for optimized magnetic performance
Provides good balance between core loss and DC superposition characteristics
Designed as a normal mode choke for differential mode filtering applications

Common Mode Chokes Applications

Power supply input filtering
Differential mode noise suppression in electronic circuits
General purpose power inductor applications requiring high current handling

Common Mode Chokes Procurement Notes

Verify the specific part number HHBC12-1R0A0051V against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with existing PCB layouts regarding lead spacing and mounting requirements. Cross-reference datasheets for thermal derating curves if operating near maximum temperature limits.

Common Mode Chokes Selection Notes

Select this component when a normal mode choke with 51 µH inductance and 5 A current rating is required. Consider the Fe-Si core material properties for applications needing stable performance under DC bias. Verify that the through-hole package fits the assembly constraints and that the 28 mΩ resistance meets efficiency targets.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of toroidal inductors. These parts are engineered for power electronics applications where reliable inductance and current handling are critical. The series offers various inductance values and current ratings to suit different circuit design needs.
