HHBC14-1R2A0067V

Common Mode Chokes Overview

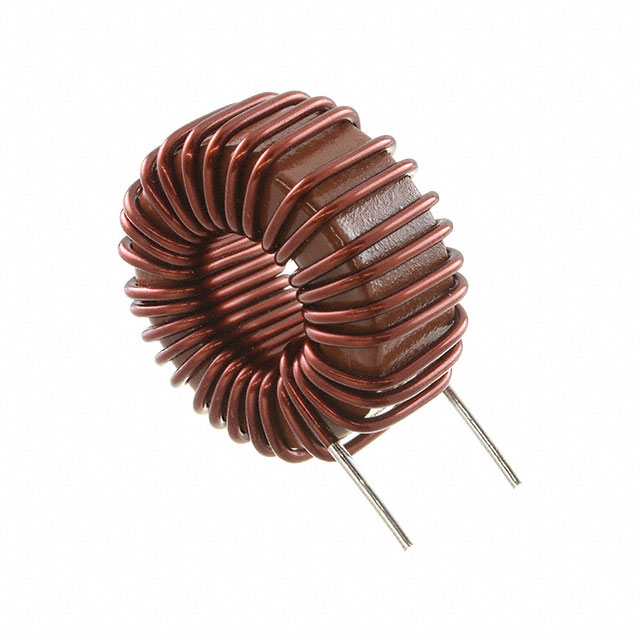

The KEMET HHBC14-1R2A0067V is a through-hole toroidal differential mode inductor from the HHBC series. It features an inductance of 67 μH with a 20% tolerance and a maximum DC resistance of 22.2 mΩ. The component supports a saturation current of 8 A and operates within a temperature range of -55 °C to 125 °C. Designed for vertical mounting, it utilizes radial leads and complies with RoHS standards.

Common Mode Chokes Feature Summary

• Utilizes a toroidal core geometry to minimize electromagnetic interference and enhance magnetic field containment.
• Engineered for high-current applications with robust saturation characteristics suitable for power filtering.
• Features a leaded construction designed for reliable insertion into printed circuit boards.

Common Mode Chokes Applications

• Power supply input filtering
• Differential mode noise suppression
• General-purpose power electronics

Common Mode Chokes Procurement Notes

Verify the specific electrical parameters against the manufacturer datasheet prior to integration. Confirm that the 8 A current rating aligns with the thermal management requirements of the target application. Ensure the through-hole footprint matches the PCB design specifications.

Common Mode Chokes Selection Notes

Select this component when high current handling and low impedance are required for differential mode chokes. Compare the 67 μH value against alternative series options if different inductance or physical dimensions are needed. Verify compliance with specific environmental certifications required by the end product.

Common Mode Chokes Part Context

This part belongs to the HHBC series of fixed inductors manufactured by KEMET. The series provides various inductance values and current ratings tailored for power applications. The HHBC14-1R2A0067V represents a specific configuration optimized for higher current loads compared to lower-rated variants in the same family.

Common Mode Chokes Replacement Considerations

Consult official KEMET documentation for direct substitutes. Cross-reference similar models within the HHBC series based on inductance and current requirements.
