HHBC14-1R2A0187V

Common Mode Chokes Overview

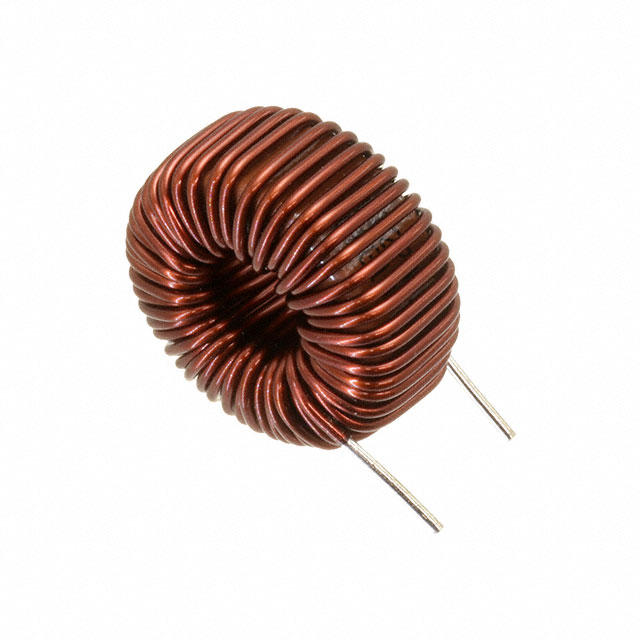

The KEMET HHBC14-1R2A0187V is a through-hole toroidal power inductor from the HHBC series. It features an inductance of 187 µH with a tolerance of ±20%. The component supports a maximum RMS current of 8 A and has a maximum DC resistance of 37.6 mΩ. Designed for robust performance, it operates within a temperature range of -55 °C to +125 °C. The device utilizes radial leads for PCB mounting and complies with RoHS standards.

Common Mode Chokes Feature Summary

• Radial leaded toroidal construction for secure through-hole mounting
• High current handling capability up to 8 A RMS
• Low DC resistance design for efficient power transmission
• Wide operating temperature range suitable for demanding environments

Common Mode Chokes Applications

• DC-DC converter input and output filtering
• Power supply choke applications
• EMI suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific part number HHBC14-1R2A0187V against official KEMET documentation to confirm electrical parameters such as 187 µH inductance and 8 A current rating. Ensure compatibility with your PCB footprint and thermal requirements. Check for recent compliance updates or material change notifications directly from the manufacturer before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low impedance are required in a through-hole format. The 187 µH value suits specific filtering needs in power stages. Consider the physical dimensions and lead spacing for board layout. Compare against similar HHBC series variants if different inductance or current ratings better match the circuit design constraints.

Common Mode Chokes Part Context

This inductor belongs to the KEMET HHBC series, which offers a range of toroidal power inductors. These components are designed for general-purpose power electronics applications requiring reliable performance under load. The series provides various inductance values and current ratings to accommodate diverse circuit requirements while maintaining consistent quality and manufacturing standards.

Common Mode Chokes Replacement Considerations

Consult KEMET datasheets for direct equivalents within the HHBC series. Verify that any substitute matches the 187 µH inductance, 8 A current rating, and 37.6 mΩ DCR. Ensure mechanical compatibility including lead spacing and body size. Cross-reference with other manufacturers only if specifications align precisely.
