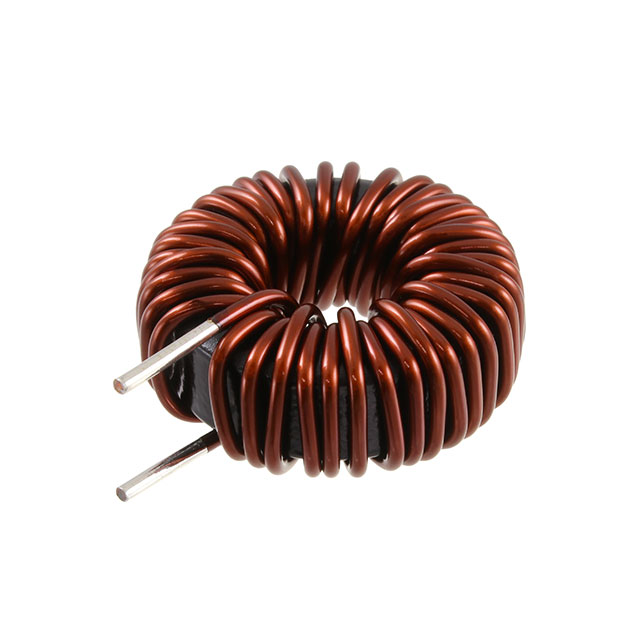

HHBC20-1R7A0054V

$5.76

Description：CMC 54UH 12A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk

SKU:85475c13de68 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HHBC20-1R7A0054V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 54UH 12A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HHBC20-1R7A0054V

Description：CMC 54UH 12A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：12A
DC Resistance (DCR) (Max)：11.5mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：54 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HHBC20-1R7A0054V

HHBC20-1R7A0054V

Common Mode Chokes Overview

The KEMET HHBC20-1R7A0054V is a leaded power inductor belonging to the toroidal wire type category. It features a radial termination style and an unshielded magnetic design suitable for through-hole PCB mounting. The component provides an inductance of 54 µH with a tolerance of ±20%. It supports a maximum DC current of 8 A and exhibits a maximum DC resistance of 11.5 mΩ. The unit operates within a temperature range of -40 °C to +120 °C, with standard terminals and a lead diameter of 1.7 mm.

Common Mode Chokes Feature Summary

Toroidal core construction providing high efficiency for power applications
Unshielded design allowing flexible circuit layout integration
Radial through-hole termination for secure PCB mounting

Common Mode Chokes Applications

Commercial electronic equipment
Industrial automation systems
Semiconductor manufacturing tools
Optoelectronic products

Common Mode Chokes Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with target thermal environments and current requirements. Cross-reference datasheet specifications for lead spacing and mounting constraints before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component based on its 54 µH inductance and 8 A current handling capability. Consider the unshielded nature when designing layouts to prevent electromagnetic interference with adjacent sensitive traces. Confirm that the radial package fits the available board space and that the operating temperature range meets system demands.

Common Mode Chokes Part Context

This component is part of KEMET's HHBC series of leaded power inductors. These devices are engineered for general-purpose power filtering and energy storage in various electronic circuits. The series offers robust performance characteristics suitable for demanding commercial and industrial environments.
