HHBC8S-0R6A0024V

$1.79

Description：CMC 24UH 2A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk

SKU:2140dbc21897 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HHBC8S-0R6A0024V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 24UH 2A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HHBC8S-0R6A0024V

Description：CMC 24UH 2A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：41.1mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.630" Dia (16.00mm)
Height (Max)：0.630" (16.00mm)
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：24 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HHBC8S-0R6A0024V

HHBC8S-0R6A0024V

Common Mode Chokes Overview

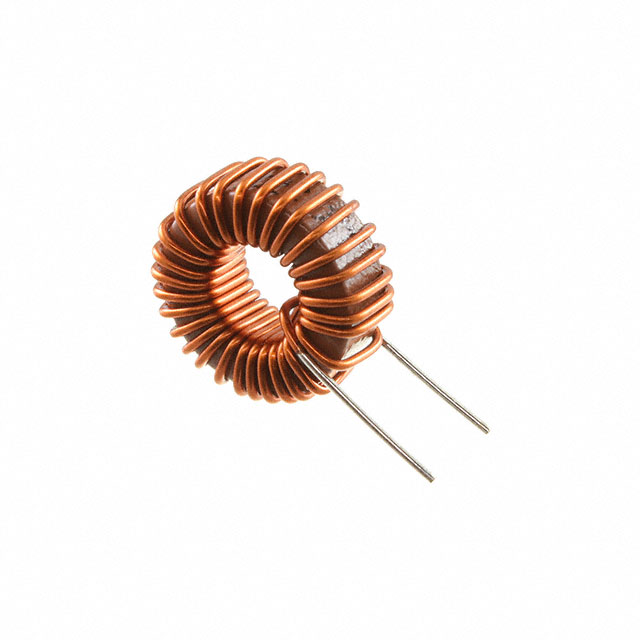

The KEMET HHBC8S-0R6A0024V is a leaded power inductor from the HHBC series, featuring a toroidal ferrite core and radial termination. It provides an inductance of 24 µH with a tolerance of ±20%. The component supports a maximum DC current of 2 A and exhibits a maximum DC resistance of 41.1 mΩ. Designed for PCB mounting, it operates within a temperature range of -40°C to +125°C. The unshielded design utilizes standard leads with a diameter of 0.6 mm and a pitch of 7 mm, suitable for commercial applications.

Common Mode Chokes Feature Summary

Toroidal ferrite core construction for efficient magnetic flux containment
Radial through-hole termination for reliable PCB integration
Unshielded design optimized for general-purpose power filtering

Common Mode Chokes Applications

Commercial power supply circuits
General-purpose signal filtering
DC-DC converter input/output stages

Common Mode Chokes Procurement Notes

Verify the specific suffix 'V' against the manufacturer's latest datasheet to confirm lead plating and material specifications. Ensure the selected variant matches the required thermal performance and RoHS compliance status for your target market. Cross-reference the Mouser part number 80-HHBC8S-0R6A0024V for accurate ordering details and updated regulatory documentation.

Common Mode Chokes Selection Notes

Select this component when a compact, high-current toroidal inductor is required for through-hole assembly. The 2 A rating and low DCR make it suitable for moderate power levels where space constraints favor a radial footprint over surface-mount alternatives. Consider the unshielded nature when designing layouts sensitive to external magnetic interference.

Common Mode Chokes Part Context

This part belongs to the KEMET HHBC series of leaded power inductors. The series offers various inductance values and current ratings using similar toroidal ferrite cores. The HHBC8S designation indicates specific physical dimensions and lead configurations within the broader family, ensuring compatibility with standard automated or manual insertion processes.
