HJ-380IMH

RF Transceiver Modules And Modems Overview

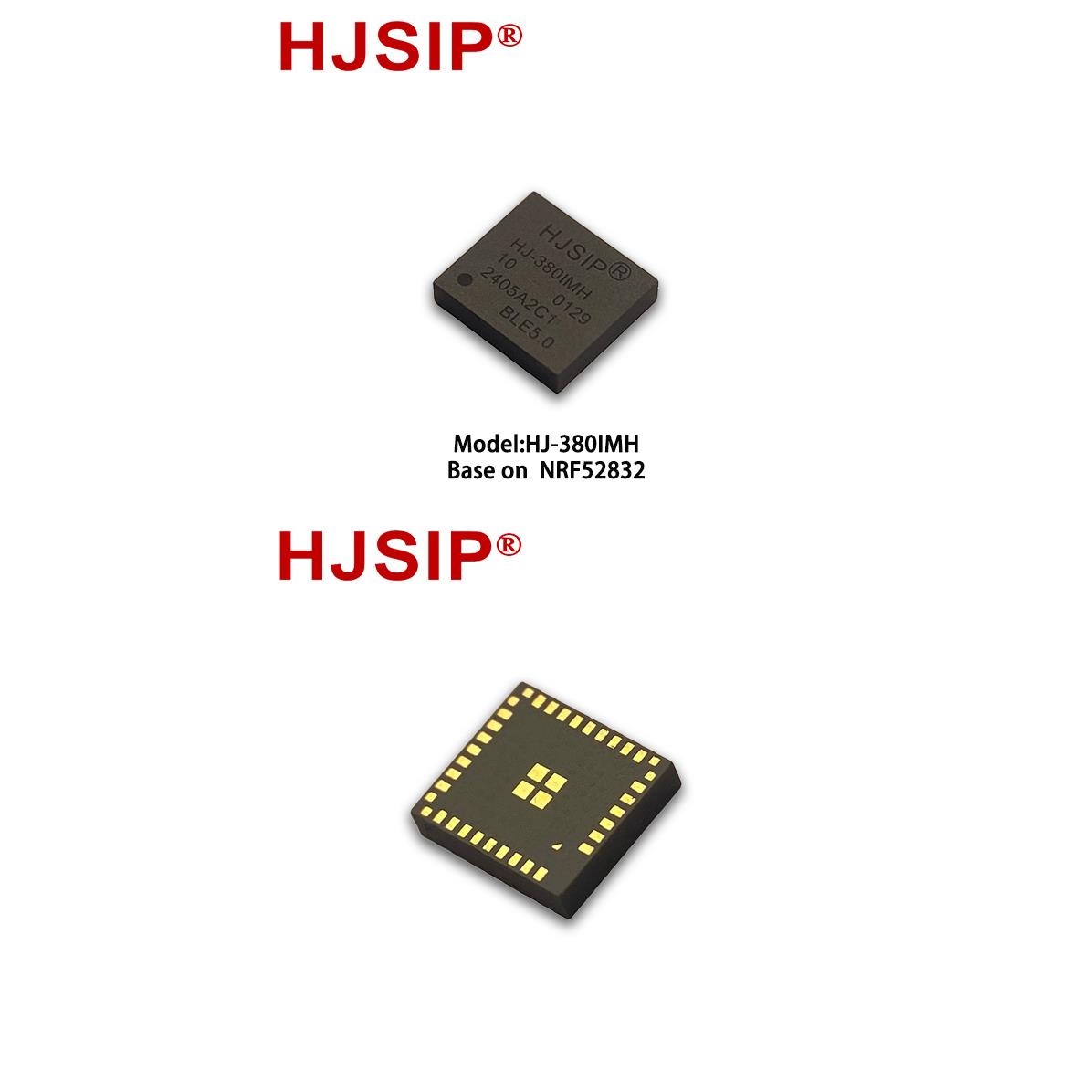

The HJ-380IMH is a Bluetooth Low Energy System-in-Package module based on the Nordic nRF52832 SoC. It supports Bluetooth 5.0, IEEE 802.15.4, NFC, ANT+, and Zigbee protocols. The module features a compact footprint of 6mm x 6.5mm, integrating the main chip, passive components, and antenna into a single package. It is designed for low power consumption applications requiring reliable wireless connectivity.

RF Transceiver Modules And Modems Feature Summary

• Integrates Nordic nRF52832 SoC with built-in Bluetooth 5.0 and 2.4GHz radio capabilities
• Supports multiple wireless standards including BLE, 802.15.4, NFC, and ANT+
• Compact SIP design reduces board space requirements

RF Transceiver Modules And Modems Applications

• Medical devices
• Industrial applications
• Consumer electronics

RF Transceiver Modules And Modems Procurement Notes

Verify the specific revision level and firmware pre-installation status directly with HJSIP or authorized distributors before procurement. Confirm that the module meets the required regional regulatory certifications for the target market. Ensure compatibility with the host system's voltage levels and interface requirements.

RF Transceiver Modules And Modems Selection Notes

Select this module when a small form factor is critical alongside multi-protocol support. It is suitable for designs needing integrated Bluetooth 5.0 and 802.15.4 without external RF matching networks. Consider the 6x6.5mm size constraint against available PCB real estate.

RF Transceiver Modules And Modems Part Context

This component belongs to the HJSIP chip-level SIP Bluetooth module series. It utilizes the widely adopted nRF52832 platform, offering a balance of processing power and energy efficiency for IoT endpoints.

RF Transceiver Modules And Modems Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult HJSIP technical support for direct equivalents or pin-compatible alternatives.
