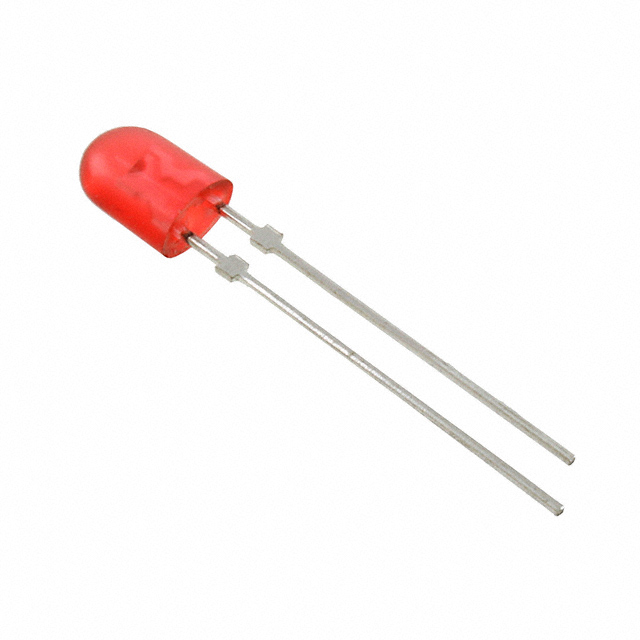

HLMP-HG65-VY0DD

$0.95

Description：LED RED DIFFUSED 5MM OVAL T/H
Series：-
Mfr：Broadcom Limited
Package：Cut Tape (CT),Tape & Box (TB)

SKU:ce9b84f8c425 Category: LED Indication - Discrete Brand: Broadcom Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HLMP-HG65-VY0DD is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Broadcom Limited. Its product description is LED RED DIFFUSED 5MM OVAL T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for HLMP-HG65-VY0DD

Description：LED RED DIFFUSED 5MM OVAL T/H
Series：-
Mfr：Broadcom Limited
Package：Cut Tape (CT),Tape & Box (TB)
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Diffused
Millicandela Rating：1775mcd
Lens Style：Oval with Domed Top
Lens Size：5.20mm x 3.80mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：100°, 40°
Mounting Type：Through Hole
Wavelength - Dominant：626nm
Wavelength - Peak：634nm
Features：-
Package / Case：Radial
Supplier Device Package：5mm Oval
Size / Dimension：-
Height (Max)：7.20mm

LED Indication - Discrete datasheet and documents for HLMP-HG65-VY0DD

HLMP-HG65-VY0DD

LED Indication - Discrete Overview

The HLMP-HG65-VY0DD is a single-color red LED from Broadcom Limited, designed for through-hole mounting. It features a diffused oval lens with dimensions of 5.20mm x 3.80mm and a maximum height of 7.00mm. The device emits light at a peak wavelength of 634nm with a typical forward voltage of 2.1V at a test current of 20mA. It offers a luminous intensity of 1150mcd and provides viewing angles of 40° and 100°. The component is RoHS compliant and operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Features a precision optical design with an oval-shaped radiation pattern suitable for wide field-of-view applications.
Constructed with package epoxy containing UV-A and UV-B inhibitors to reduce degradation from long-term sunlight exposure.
Provides high luminous intensity and readability in bright environments due to the diffused lens configuration.

LED Indication - Discrete Applications

Full color and video passenger information signs
Wide field of view outdoor indicator applications
High-visibility status indicators requiring sunlight readability

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct lens transparency and binning match your design requirements. Confirm that the radial through-hole package dimensions align with your PCB footprint constraints. Check the latest datasheet for any updates regarding environmental compliance or manufacturing site changes before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a wide viewing angle and high brightness are required for outdoor or high-ambient-light environments. The oval shape and diffused lens provide superior visibility compared to standard round LEDs. Ensure the circuit design accounts for the 2.1V forward voltage drop at the intended operating current to maintain consistent performance.

LED Indication - Discrete Part Context

This part belongs to the HLMP-HG/HM/HB64 series of precision optical performance oval LEDs. These devices are engineered specifically for demanding visual applications where wide viewing angles and high luminous intensity are critical. The series utilizes advanced packaging techniques to enhance durability and optical efficiency.
