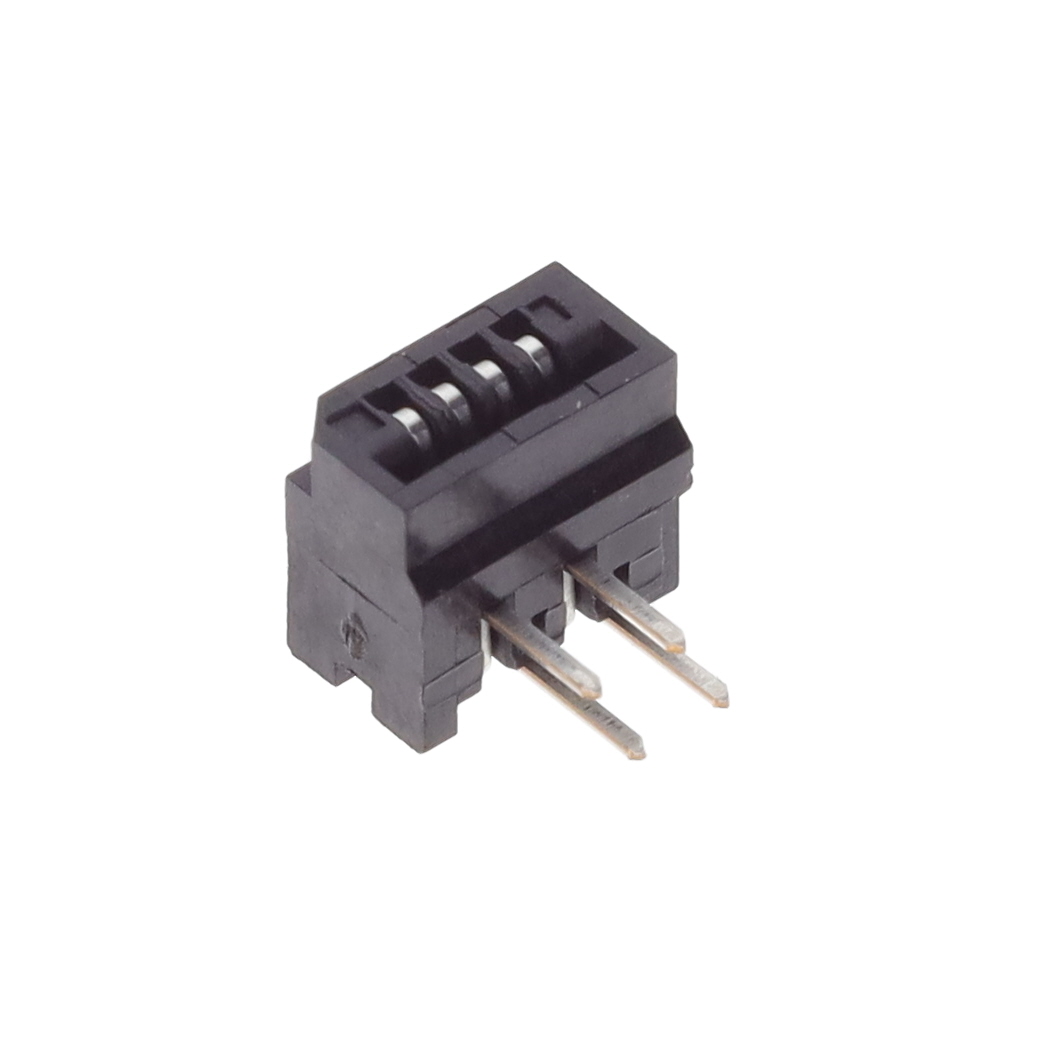

HLW4R-2A7LF

HLW4R-2A7LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC TOP 4POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HLW4R-2A7LF

• Description：CONN FFC FPC TOP 4POS 1MM R/A
• Series：HLW-R
• Mfr：Amphenol ICC (FCI)
• Package：Tray
• Flat Flex Type：FFC, FPC
• Mounting Type：Through Hole, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：4
• Pitch：0.039" (1.00mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.30mm, 0.33mm
• Height Above Board：0.154" (3.90mm)
• Locking Feature：-
• Cable End Type：Straight, Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
• Actuator Material：-
• Features：-
• Voltage Rating：100V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HLW4R-2A7LF
