HMC441LC3BTR-R5

RF Amplifiers Overview

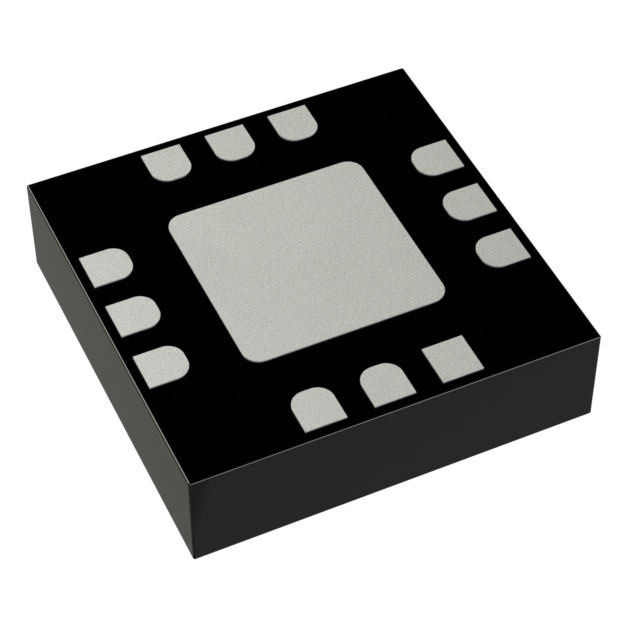

The HMC441LC3BTR-R5 is a medium power RF amplifier IC from Analog Devices Inc., designed for VSAT applications. It operates across the 6GHz to 18GHz frequency range with a typical gain of 14dB and noise figure of 4.5dB. The device delivers a P1dB compression point of 20dBm and an OIP3 of 29dBm, powered by a 5V supply drawing 115mA. It utilizes a 12-CSMT (3x3) surface mount package.

RF Amplifiers Feature Summary

• High-performance medium power amplification suitable for demanding RF environments
• Broadband operation covering C, X, Ku, and K bands
• Optimized for Very Small Aperture Terminal (VSAT) system integration

RF Amplifiers Applications

• Very Small Aperture Terminal (VSAT) systems
• Point-to-point microwave radio links
• Military communication equipment
• Instrumentation and test equipment

RF Amplifiers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific lot traceability requirements against current datasheet specifications. Ensure storage conditions adhere to moisture sensitivity level guidelines prior to assembly to maintain reliability.

RF Amplifiers Selection Notes

Select this component for designs requiring broadband coverage from 6GHz to 18GHz with moderate output power capabilities. Consider the 12-CSMT package dimensions for PCB layout constraints. Evaluate thermal management needs given the 115mA operating current and 760mW power dissipation characteristics in high-density assemblies.

RF Amplifiers Part Context

This part belongs to the HMC441G series of GaAs MMIC amplifiers. It complements other variants like the HMC441LP3ETR which offers similar performance in different packaging configurations. The series targets satellite communications and radar applications requiring reliable mid-band amplification.

RF Amplifiers Replacement Considerations

MAAM-011101-TR1000 by MACOM Technology Solutions is listed as a similar alternative part number.
