HOYS 560-SW-0000

Current Sensors Overview

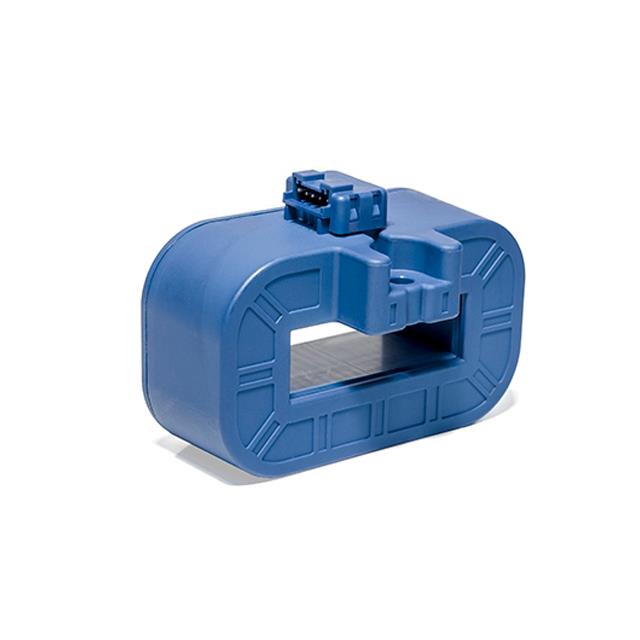

The HOYS 560-SW-0000 is a Hall effect open-loop current sensor manufactured by LEM USA Inc. It features a single channel designed for accurate measurement of DC, AC, and pulsed currents up to 560 A. The module utilizes a bidirectional configuration with a single pass-through primary bar. This component provides isolated current transduction suitable for various power electronics applications.

Current Sensors Feature Summary

• Open-loop Hall effect technology for precise current detection
• Bidirectional measurement capability for diverse signal types
• Single pass-through design for straightforward installation

Current Sensors Applications

• Power electronics systems requiring isolated current monitoring
• Industrial drives and motor control circuits
• Inverter and converter topologies

Current Sensors Procurement Notes

Verify the specific ordering suffix against official LEM documentation to ensure correct interface and mounting specifications. Confirm that the primary conductor temperature rating remains within the maximum limit of 120 °C during operation. Cross-reference the datasheet for exact pinout and isolation voltage requirements before integration.

Current Sensors Selection Notes

Select this model when high accuracy for DC and pulsed currents is required in an open-loop architecture. Ensure the system can accommodate the single pass-through primary bar geometry. Validate that the bidirectional range covers the expected operational current spectrum without saturation.

Current Sensors Part Context

This part belongs to the HOYS Series, which comprises high-performance open-loop Hall-effect current sensors. The series is engineered for accurate measurement of DC, AC, and pulsed currents. The HOYS 560 variant specifically targets higher current ranges within this family line.

Current Sensors Replacement Considerations

Consult official LEM substitution guides for verified alternatives. Generic cross-references may not match the specific Hall effect characteristics or isolation ratings of this module.
