HTSS-110-03-G-D

Headers, Male Pins Overview

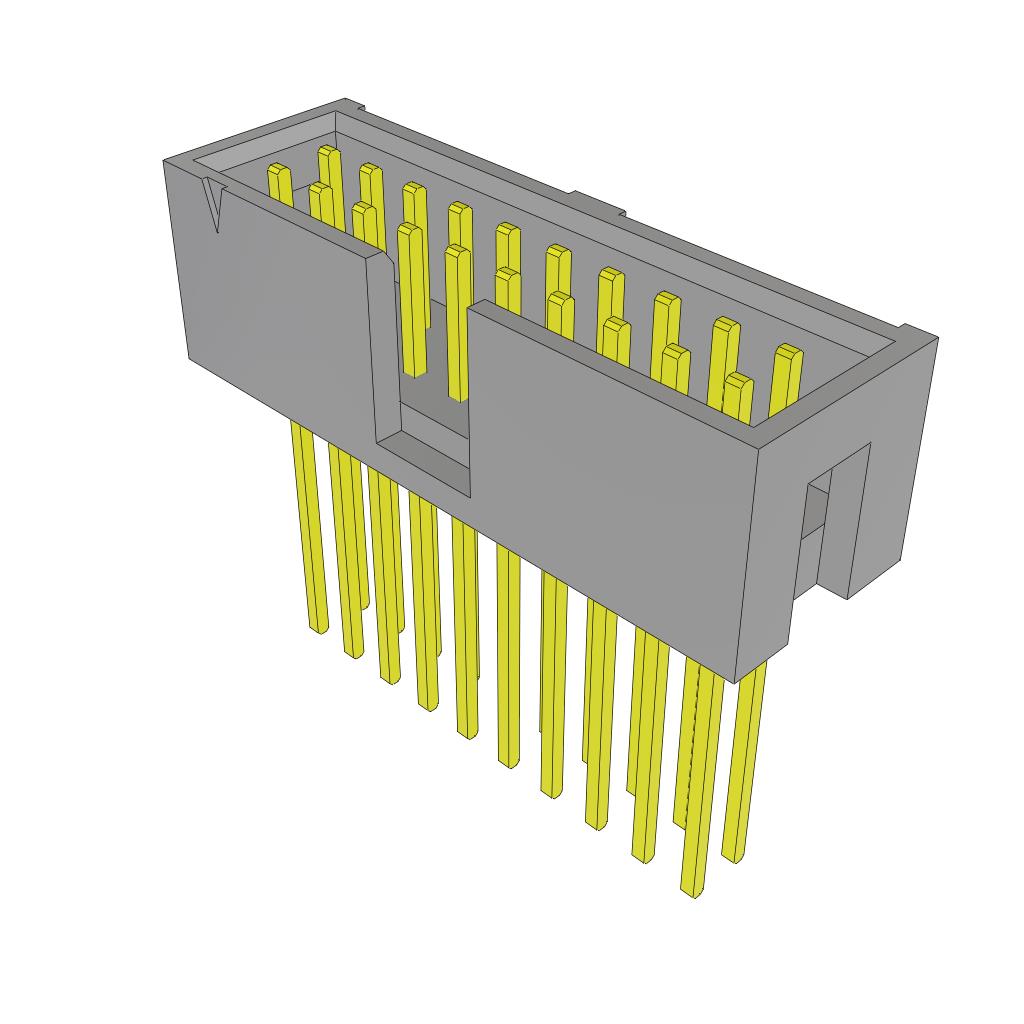

The HTSS-110-03-G-D is a board connector from the Flex Stack, HTSS series by Samtec Inc. It features 20 contacts arranged in two rows with a male configuration and straight solder terminals. The component utilizes phosphor bronze contacts plated with gold over nickel for reliable mating. Designed for through-hole mounting, it offers a standard 0.100 inch (2.54mm) pitch. The insulator is constructed from natural liquid crystal polymer (LCP), ensuring high thermal stability and compliance with UL94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

• High-temperature shrouded header design utilizing liquid crystal polymer insulation
• Gold-plated phosphor bronze contacts ensure durable electrical performance
• Four-wall shroud provides precise alignment and mechanical protection during insertion

Headers, Male Pins Applications

• Board-to-board interconnections requiring high thermal resistance
• General purpose electronic assemblies needing reliable signal transmission
• Industrial equipment operating within extended temperature ranges

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and insulator material against the official Samtec datasheet to confirm compatibility with high-temperature reflow processes. Ensure the selected variant matches the required pin count and row configuration for the target PCB footprint. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when applications demand robust connectors capable of withstanding elevated temperatures beyond standard polyester limits. The four-wall shroud design is critical for maintaining alignment in dense layouts. Consider the LCP insulator material for superior chemical resistance and dimensional stability compared to alternative thermoplastics in harsh environments.

Headers, Male Pins Part Context

This part belongs to the Flex Stack HTSS series, which specializes in high-temperature shrouded headers. The series is engineered for demanding environments where standard connectors may fail due to heat or mechanical stress. It mates with corresponding sockets such as SSW, SSQ, ESW, ESQ, SSM, and BCS series components to form complete interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes include other HTSS series variants with matching pin counts and pitch. Verify that any replacement maintains the same four-wall shroud geometry and LCP insulator material to ensure identical thermal and mechanical performance characteristics.
