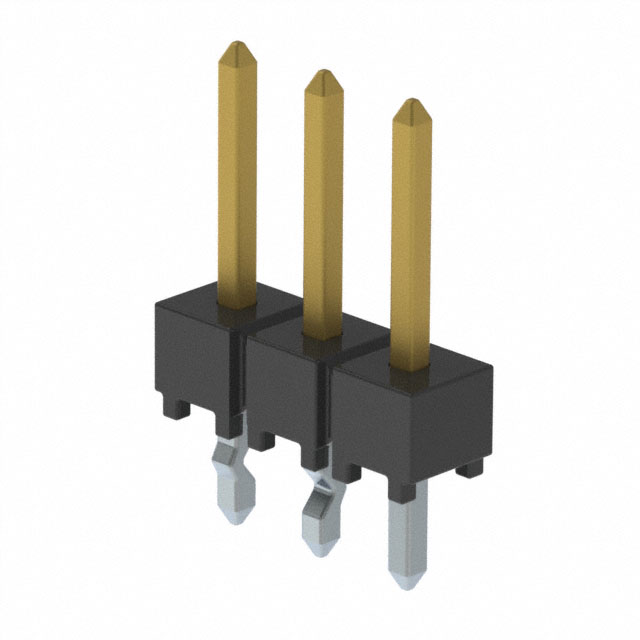

HTSW-103-07-S-S-LL

$0.58

Description：CONN HEADER VERT 3POS 2.54MM
Series：HTSW
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:39189621a6f9 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HTSW-103-07-S-S-LL is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 3POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for HTSW-103-07-S-S-LL

Description：CONN HEADER VERT 3POS 2.54MM
Series：HTSW
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Kinked Pin, Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.100" (2.54mm)
Overall Contact Length：0.430" (10.92mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：-

Headers, Male Pins datasheet and documents for HTSW-103-07-S-S-LL

HTSW-103-07-S-S-LL

Headers, Male Pins Overview

The HTSW-103-07-S-S-LL is a vertical through-hole header manufactured by Samtec Inc. It features a single row with three positions and a 0.100-inch (2.54 mm) pitch. The connector utilizes phosphor bronze contacts with a gold plating over nickel, providing a mating contact length of 0.230 inches (5.84 mm). The insulator is constructed from natural liquid crystal polymer (LCP), rated for operating temperatures between -55°C and +125°C. This component is designed for board-to-board or cable applications.

Headers, Male Pins Feature Summary

High-temperature capability using liquid crystal polymer insulation
Gold-plated phosphor bronze contacts for reliable conductivity
Vertical through-hole termination style

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates standard gold plating thickness rather than low-profile variants. Confirm the pin count matches the '03' designation in the part number. Ensure the vertical orientation aligns with PCB layout requirements. Check RoHS compliance status against current manufacturing revisions. Validate mating connector compatibility with SSW or ESQ series components.

Headers, Male Pins Selection Notes

Select this component when high-temperature stability is required due to LCP material properties. Choose the single-row configuration for space-constrained layouts. Verify that the 0.100-inch pitch matches existing design standards. Consider the gold plating for corrosion resistance in harsh environments. Ensure the through-hole mounting method suits the PCB fabrication capabilities.

Headers, Male Pins Part Context

This part belongs to the HTSW series of .100" High-Temp Terminal Strips. The series offers various pin counts and termination options. It is designed for robust performance in demanding thermal conditions. The product line supports both standard and extended life configurations.
