HTSW-107-07-S-S-LL

Headers, Male Pins Overview

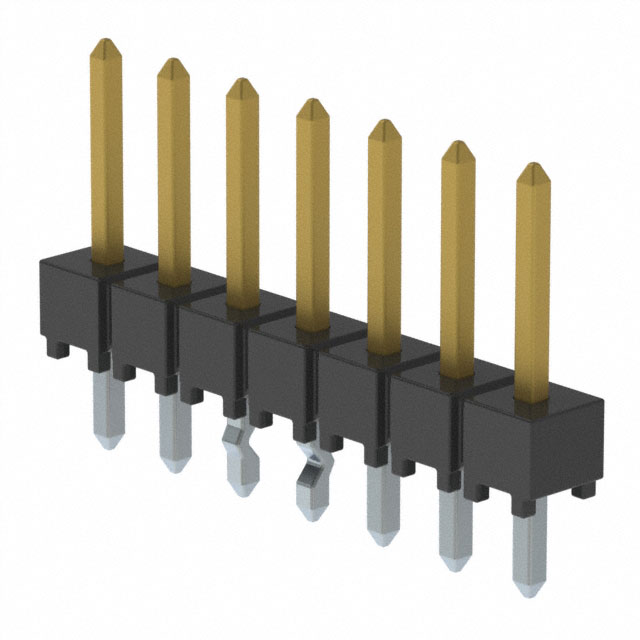

The HTSW-107-07-S-S-LL is a high-temperature terminal strip header manufactured by Samtec Inc. It features a single row of seven male pins with a 0.100-inch (2.54 mm) pitch. The connector utilizes phosphor bronze contacts finished with 30 microinches of gold over nickel for the mating interface and tin for the termination side. Designed for through-hole mounting, it employs a natural liquid crystal polymer (LCP) insulator rated UL94 V-0. The unit supports an operating temperature range from -55°C to 125°C and includes push-pull locking mechanisms.

Headers, Male Pins Feature Summary

• High-temperature design utilizing liquid crystal polymer insulation for thermal stability
• Gold-plated contact surfaces ensure reliable signal transmission in demanding environments
• Integrated push-pull locking mechanism secures board-to-board connections
• Standardized 0.100-inch pitch facilitates compatibility with common PCB layouts

Headers, Male Pins Applications

• Board-to-board interconnections requiring high-temperature resistance
• Industrial control systems operating within extended thermal ranges
• Automotive electronics applications necessitating robust mechanical locking
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against project requirements to ensure correct pin count and termination style. Confirm RoHS compliance status and material certifications prior to finalizing procurement orders. Cross-reference the manufacturer's latest datasheet for any updates on lead times or packaging specifications. Ensure storage conditions align with moisture sensitivity guidelines if applicable.

Headers, Male Pins Selection Notes

Select this component when high-temperature performance and secure mechanical retention are critical. The push-pull feature simplifies assembly and disassembly processes compared to standard headers. Evaluate the phosphor bronze contact material for appropriate current carrying capacity relative to wire gauge. Consider the natural LCP insulator color for visual identification during manufacturing.

Headers, Male Pins Part Context

This part belongs to the HTSW series of high-temperature terminal strips from Samtec. The series offers various configurations including different pin counts, row arrangements, and plating options. The HTSW-107-07-S-S-LL specifically denotes a single-row, seven-position variant with standard gold plating and push-pull locking capabilities.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec HTSW variants with matching pin counts and locking features. Verify dimensional compatibility and electrical ratings before substituting with generic equivalents. Ensure alternative components support the required high-temperature operating range.
