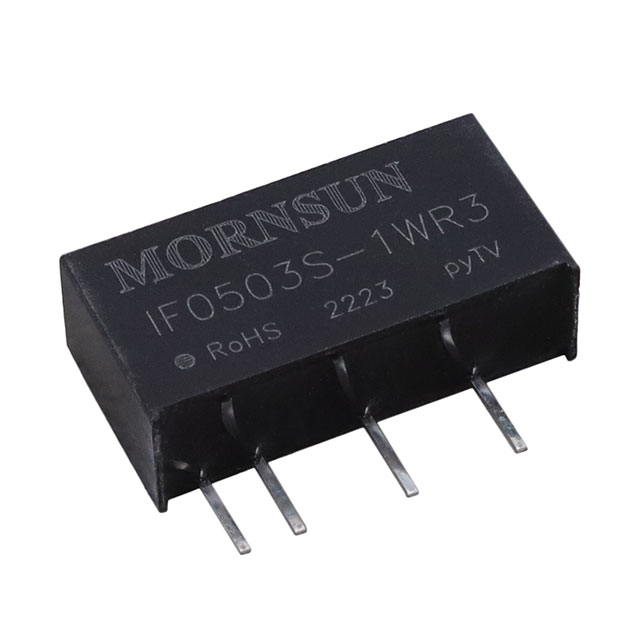

IF0503S-1WR3

IF0503S-1WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER 3.3V 825MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IF0503S-1WR3

• Description：DC DC CONVERTER 3.3V 825MW
• Series：IF05_S-1WR3
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：5.25V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：825 mW
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：67%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：62368-1

DC DC Converters datasheet and documents for IF0503S-1WR3
